serial number | 1 | 2 | 3 | 4 | 5 | 6 |
colour | Blue | tangerine | green | brown | grey | white |
serial number | 7 | 8 | 9 | 10 | 11 | 12 |
colour | red | black | yellow | purple | pink | dark green |
No. | Items | Unit | Specification | |
G.652D | ||||
1 | ModeField Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.22 | ||

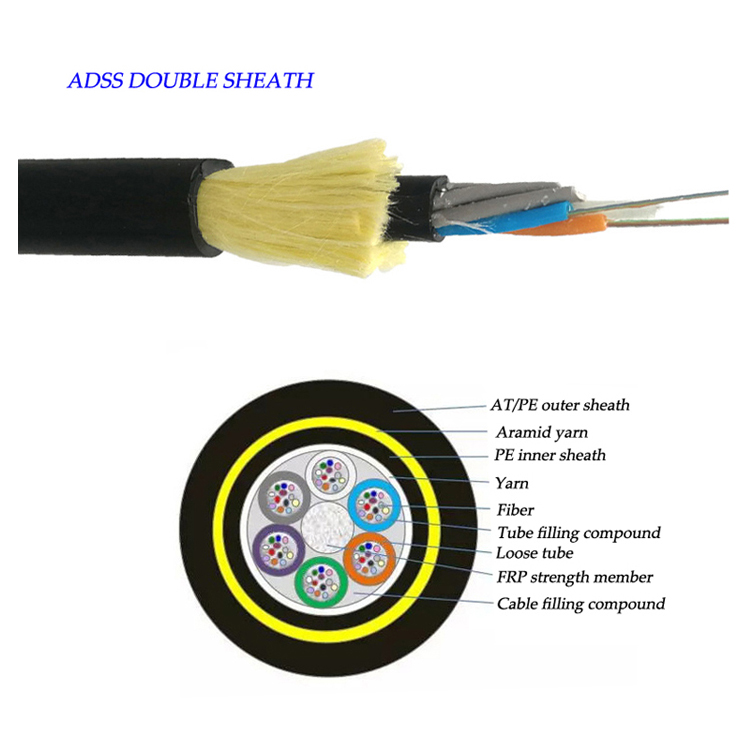

Items | Specifications | |
Fiber No. | 24 | |
Cable Inner Structure | 1+6 | |
Loose Tube | Dimension | 2.2mm±0.05mm |
Material | PBT | |
Tube No. | 4 | |
Fibers per Tube | 6 | |
Fillers | Dimension | 2.2mm±0.05mm |
Material | PVC | |
Color | White | |
No. | 2 | |
Central Strengthen Member | Diameter | 2.2±0.05mm |
Material | FRP | |
Strengthen Member, Aramid Yarn | Span | 120 Meters |
Material | Aramid Yarn | |
Inner Sheath | Material | PE |
Color | Black | |
Thickness | 1.0 ±0.1mm | |
Outer Sheath | Material | PE |
Color | Black | |
Thickness | 2.0 ±0.1mm | |
OD. | Cable Outer Diameter | 11.5 ±0.1mm |
Weight | Cable Weight Per KM. | 130 ±10kg/km |
Items | Unit | Specifications |
Weight | Kg/km | 130 ±10kg/km |
Max. Tensile （Long Term） | N | 1300 |
Max. Tensile （Short Term） | N | 2600 |
Crush（Long Term） | N/10cm | 900 |
Crush（Short Term） | N/10cm | 1800 |
Min. Bend Radius（Dynamic） | mm | 25D |
Min. Bend Radius（Static） | mm | 10D |
Installation Temperature | ℃ | -20～+60 |
Operating Temperature | ℃ | -40～+70 |
Storage Temperature | ℃ | -40～+70 |
