Optical PLC Splitter 1*2 1*4 1*8 1*16 LC SC APC UPC Steel Tube PLC Splitter

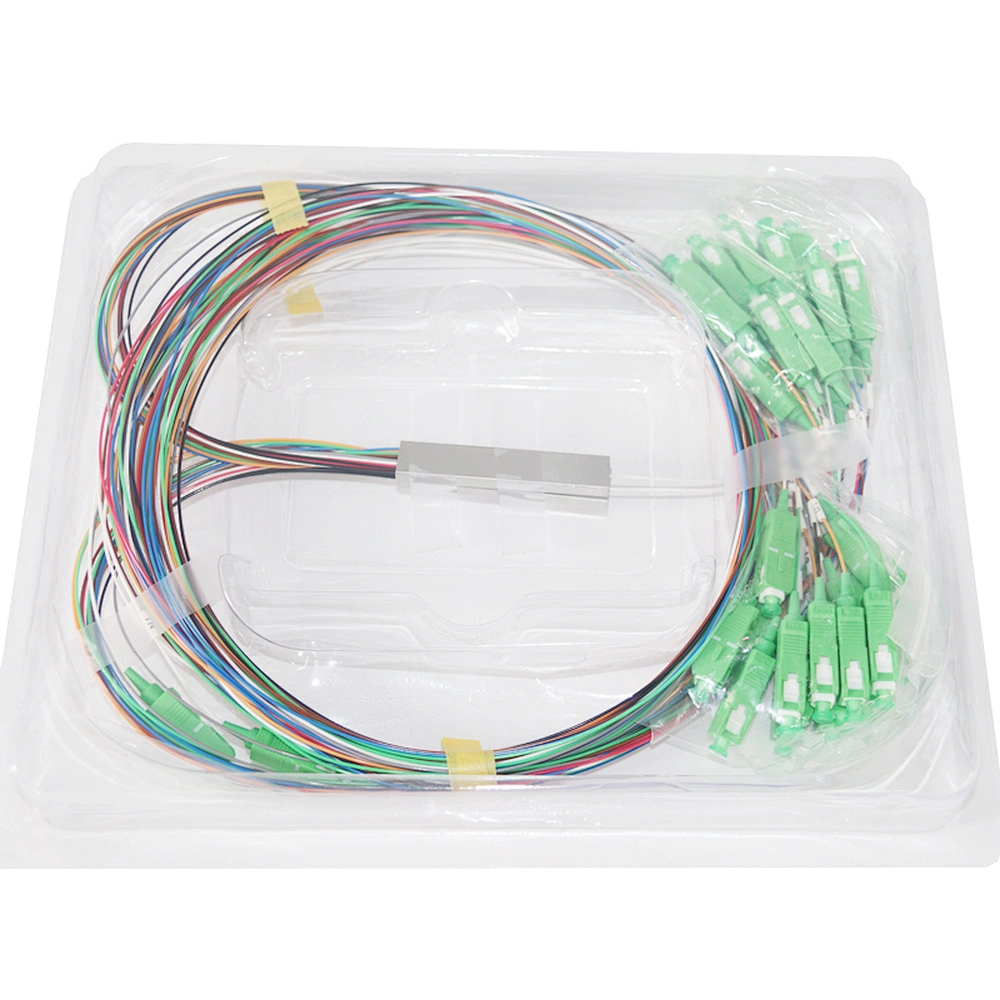

Steel Tube PLC Splitter
Fiber Type:Single Mode
Cable Diameter:0.9 mm
Splitter Type:Steel Tube
Splitter Ratio:50/50
Wavelength:1310nm 1550nm
Cable Length:0.6m 0.9m 1m
Connector Type:LC SC ST FC
Cable Diameter:0.9 mm
Splitter Type:Steel Tube
Splitter Ratio:50/50
Wavelength:1310nm 1550nm
Cable Length:0.6m 0.9m 1m
Connector Type:LC SC ST FC
Quantity
Feature:
--Low insertion loss & High return loss
--Good exchangeability
--Good Durability
--High temperature stability
--Superior PC/UPC/APC Polishing
--Standard: IEC Grade B
Applications:
--Fiber Optic communications system
--Fiber Optic access networks
--CATV/CCTV
--Fiber Optic data communication
--Fiber Optic Test Equipment
| Technical Specifications | |||
| Optical Performance | Endface Geometry Performance | ||
| Polishing | UPC APC | Item | Φ1.25/2.5 mm Ferrule |
| Testing Wavelength | 1310nm & 1550nm | Radius of Curve | 7 to 25mm |
| Insertion Loss | ≤0.25dB | Apex Offset | 0 to 50μm |
| Return Loss | ≥50dB | Fiber Height | -50 to 50nm |
