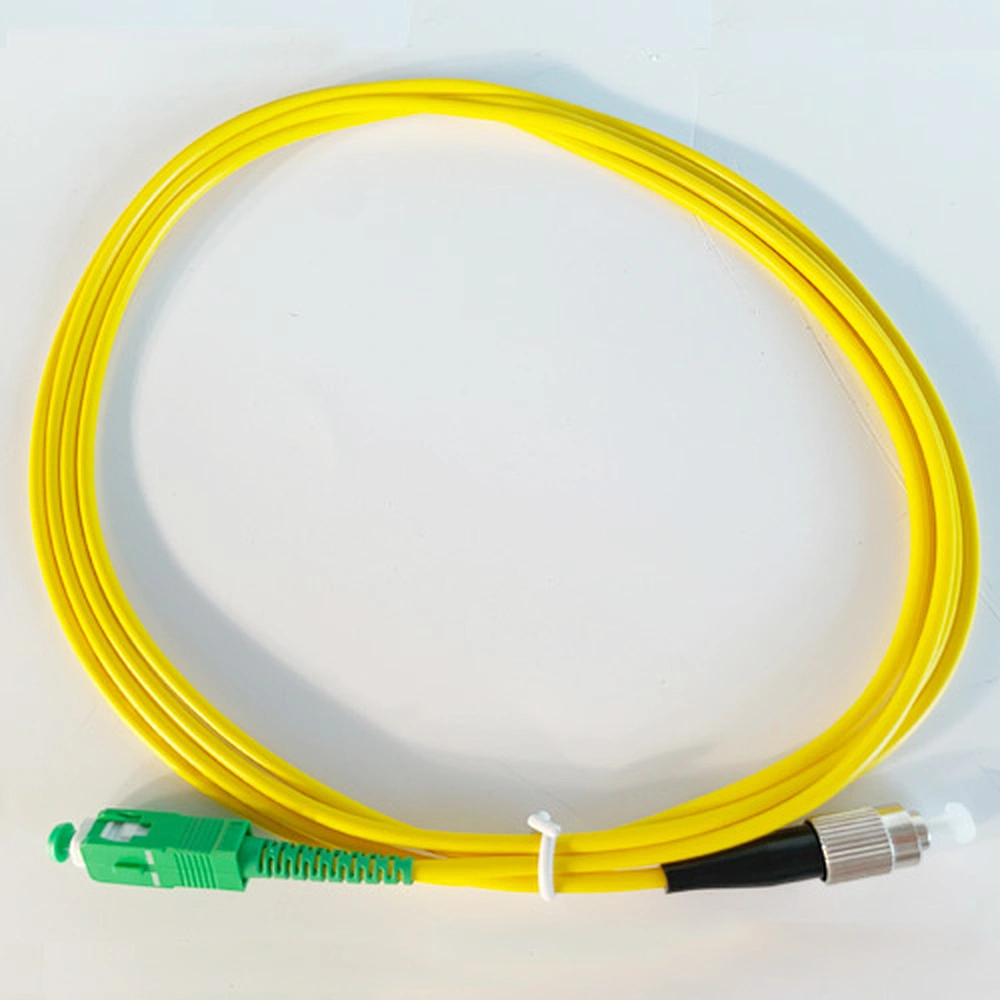

Optical Fiber SC/APC-FC/UPC 2.0mm 3.0mm Single Mode Fiber Optic SC Patchcord
SC-FC
Application:FTTH FTTB FTTX Networking
Color:yellow/orange red/blue/customized color
Jacket:LSZH, PVC,OFNR,OFNP optional
Fiber Type:SM(G657A,G652D) or MM (OM1, OM2, OM3,OM4)
Fiber count:1-2 Cores
Bending radius:20D/10D
Structure:fiber core+tight buffer + k evlar yearn+ out sheath
Certification:ETL/CE/ROHS/ISO9001
Warranty:25 years
Color:yellow/orange red/blue/customized color
Jacket:LSZH, PVC,OFNR,OFNP optional
Fiber Type:SM(G657A,G652D) or MM (OM1, OM2, OM3,OM4)
Fiber count:1-2 Cores
Bending radius:20D/10D
Structure:fiber core+tight buffer + k evlar yearn+ out sheath
Certification:ETL/CE/ROHS/ISO9001
Warranty:25 years
Quantity
Features
Low insertion loss.
Good waterproof preformance.
Low smoke, zero halogen and flame retardant sheath.
Smaller diameter, simple structure, light weight, and high practicability.
Special low-bend-sensitivity fiber provides high bandwidth data transmission.
Applications
Optical fiber communication systems Optical fiber data transmission Building network access Cabling system ODF
FTTX applications
Datasheet
| Mode | Single Mode ( SM) | Multi Mode (MM) | ||
| End-face Polish | UPC | APC | APC | |
| Insertion Loss | Typical ≤0.2dB; Maximum ≤0.3dB | ≤0.25dB | ||
| Return Loss | ≥50dB | ≥65dB | ≥35dB | |
| Interchangeability | ≤0.2dB | |||
| Repeatability | ≤0.1dB | |||
| Durability | ≤0.2dB (1000 times mating) | |||
| Tensile Strengh | >10kg | |||
| Temperature | ≤0.2dB (-40 ,+85 sustain 100 hours) | |||
| Humidity | ≤0.2dB (+25 ,+65 93 R.H.100 hours) | |||
| Optional Fiber Patch Cord Customize | ||||
| Connector type | FC, SC, LC, ST, E2000 | |||
| Ferrule End-face | UPC, APC | |||
| Fiber Core Type | Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um) | |||
| Fiber Count | Simplex, Duplex | |||
| Cable Diameter | φ3.0mm,φ2.0mm, φ0.9mm | |||
| Length | 1, 2, 3, 5, 10 ,20,50 meter or customized | |||
| Jacket | PVC, LSZH | |||
