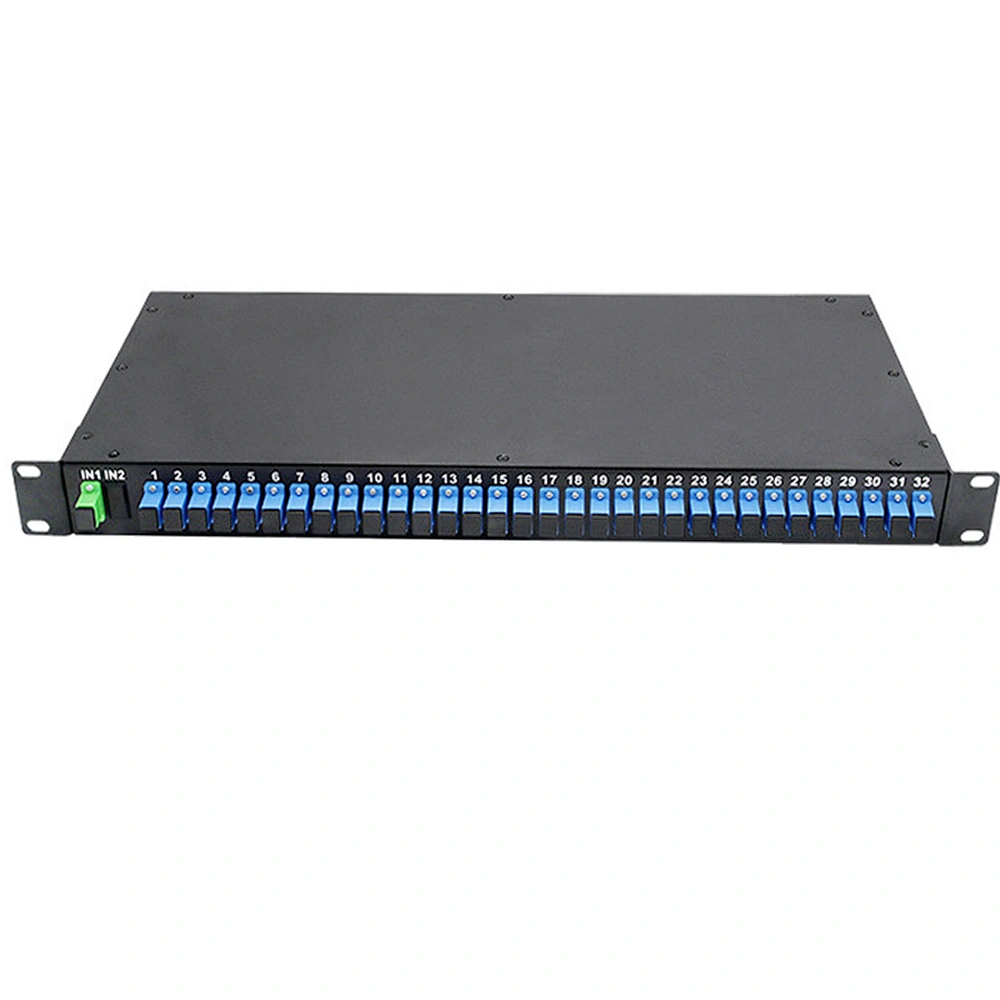

Optic Fiber Splitter 19 Inch 1U Rack Mount PLC Splitter
Rack Mount PLC Splitter
The frame is a splitter, which is an integrated waveguide optical power distribution device based on a quartz substrate. It has the characteristics of small size, wide operating wavelength range, high reliability, and good uniformity of light splitting. It is especially suitable for passive optical networks (EPON, BPON, GPON, etc.) connect the central office and terminal equipment and realize the branching of optical signals. There are two types of 1 × N and 2 × N. The 1 × N and 2 × N splitters evenly divide the optical signals from multiple single or dual inlets into multiple outlets, or work in reverse to send multiple optical signals into a single or dual fiber.
Quantity
Features:
· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm
Application:
Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm
Application:
Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
| 1×32 Single Mode PLC Splitter Data Sheet | |||||||
| Operating Wavelength(nm) | 1260-1650 | Inspected Date | 2018/12/8 | ||||
| P/N: | PLC-U-1X32 | S/N: | 20180308043 | ||||
| Fiber Type | G657A1 | Fiber Length(m) | ≥1.0 | ||||
| Connector Type | SC/APC | Package Dimension(mm) | 482.6*44.45 | ||||
| Storage Temperature | -40～+85℃ | Operating Temperature | -40～+85℃ | ||||
| Item | IL(dB) | PDL(dB) | RL(dB) | ||||
| Wavelength(nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 | |
| Spec. | MAX17.1 | MAX 0.3 | ≥55 | ||||
| Port1 | 16.5 | 16.22 | 0.06 | 0.17 | Pass | Pass | |
| Port2 | 15.96 | 16.07 | 0.14 | 0.05 | Pass | Pass | |
| Port3 | 16.16 | 16.49 | 0.06 | 0.18 | Pass | Pass | |
| Port4 | 16.22 | 15.86 | 0.12 | 0.06 | Pass | Pass | |
| Port5 | 15.8 | 16.23 | 0.19 | 0.07 | Pass | Pass | |
| Port6 | 15.94 | 16.5 | 0.13 | 0.12 | Pass | Pass | |
| Port7 | 16.13 | 16.49 | 0.16 | 0.09 | Pass | Pass | |
| Port8 | 15.85 | 16.51 | 0.1 | 0.15 | Pass | Pass | |
| Port9 | 16.33 | 16.07 | 0.06 | 0.16 | Pass | Pass | |
| Port10 | 16.19 | 16.42 | 0.05 | 0.1 | Pass | Pass | |
| Port11 | 16.34 | 16.57 | 0.18 | 0.16 | Pass | Pass | |
| Port12 | 15.88 | 15.81 | 0.11 | 0.13 | Pass | Pass | |
| Port13 | 15.98 | 16.4 | 0.16 | 0.1 | Pass | Pass | |
| Port14 | 16.23 | 16.51 | 0.14 | 0.07 | Pass | Pass | |
| Port15 | 16.12 | 16.57 | 0.15 | 0.07 | Pass | Pass | |
| Port16 | 16.35 | 16.02 | 0.02 | 0.06 | Pass | Pass | |
| Port17 | 16.52 | 16.47 | 0.17 | 0.03 | Pass | Pass | |
| Port18 | 16.18 | 16.4 | 0.02 | 0.11 | Pass | Pass | |
| Port19 | 15.85 | 16.13 | 0.02 | 0.1 | Pass | Pass | |
| Port20 | 16.55 | 16.49 | 0.03 | 0.02 | Pass | Pass | |
| Port21 | 16.53 | 16.29 | 0.08 | 0.17 | Pass | Pass | |
| Port22 | 16.14 | 16.27 | 0.13 | 0.05 | Pass | Pass | |
| Port23 | 15.86 | 16.31 | 0.11 | 0.09 | Pass | Pass | |
| Port24 | 16.51 | 16.4 | 0.08 | 0.18 | Pass | Pass | |
| Port25 | 16.3 | 16.12 | 0.12 | 0.04 | Pass | Pass | |
| Port26 | 16.57 | 16.18 | 0.08 | 0.12 | Pass | Pass | |
| Port27 | 15.87 | 16.54 | 0.1 | 0.17 | Pass | Pass | |
| Port28 | 16.35 | 16.56 | 0.05 | 0.11 | Pass | Pass | |
| Port29 | 16.39 | 16.36 | 0.04 | 0.02 | Pass | Pass | |
| Port30 | 16.36 | 16.24 | 0.03 | 0.01 | Pass | Pass | |
| Port31 | 16.54 | 16.51 | 0.16 | 0.16 | Pass | Pass | |
| Port32 | 16.35 | 16.49 | 0.14 | 0.09 | Pass | Pass | |
| Input | N/A | Pass | Pass | ||||
| MAX. | 16.57 | 16.56 | 0.17 | 0.18 | N/A | ||
| MIN. | 15.85 | 16.12 | 0.02 | 0.01 | N/A | ||
| Average | 16.3 | 16.36 | 0.09 | 0.09 | N/A | ||
| Uniformity(≤1.5dB) | 0.72 | 0.44 | Directivity(dB) | ≥55 | |||
