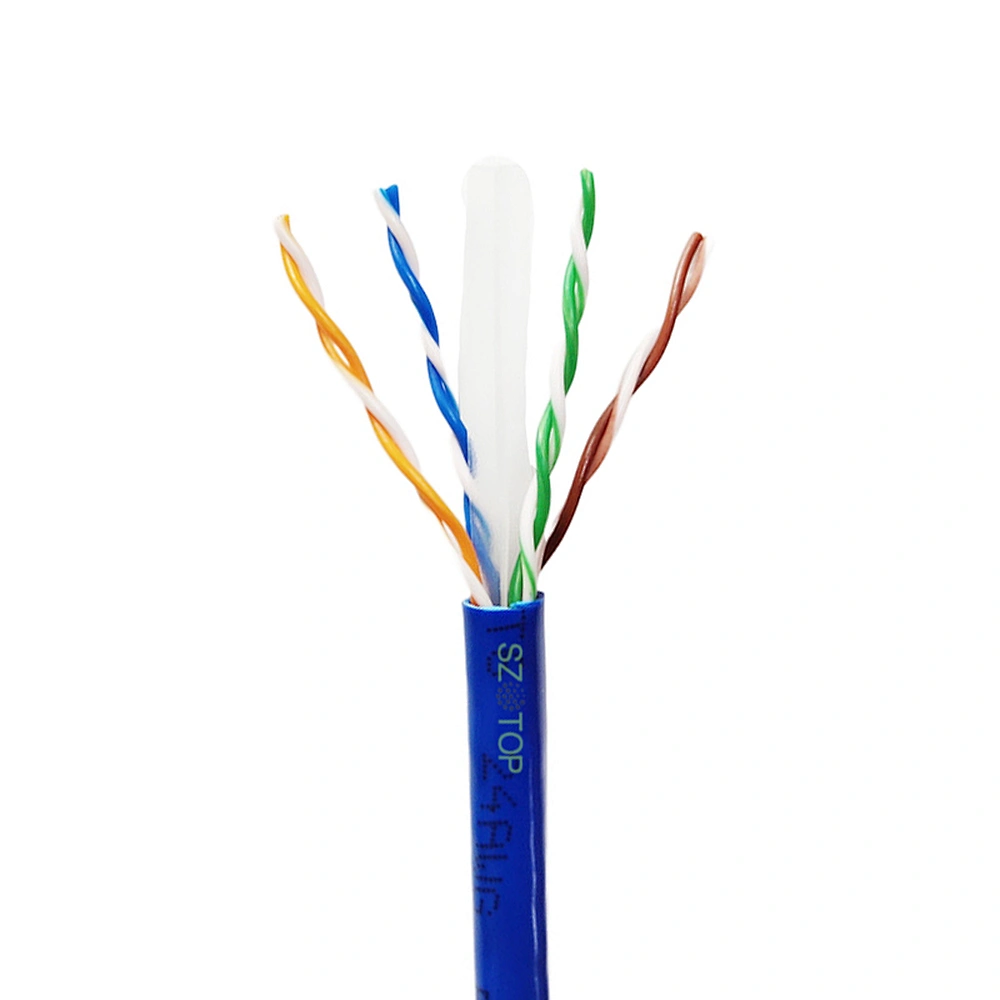

Indoor lan cable cat6 utp 24AWG multi strand network cable
CAT6 UTP
It has imported HDPE insulation, super toughness, super tensile resistance. Extend the service life of network cable
Quantity
| CAT6（UTP）LAN cable | |||||

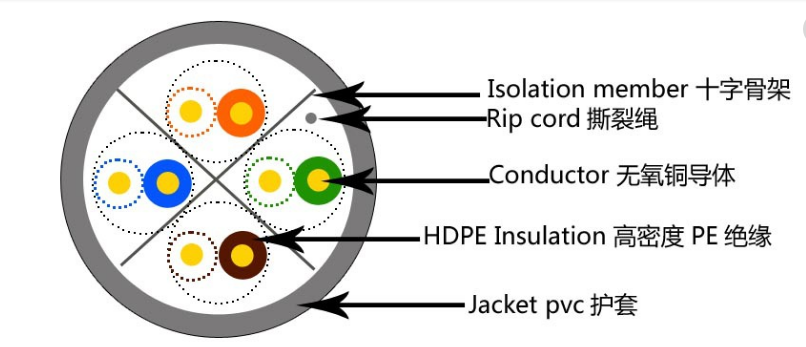

| Brand | Product sketch map (right) |  | |||
| product name | CAT6 UTP LAN cable | ||||
| Types of | Indoor network cable | ||||
| Unshielded advantages | (1), four to core line isolation, fixed effect. (2), reduce electromagnetic radiation and external electromagnetic interference. Improve crosstalk to minimize or eliminate crosstalk | ||||
| Conductor material | CCA(20% copper + 10% magnesium + 70% aluminum) | ||||
| Conductor diameter | 24AWG(0.50±0.01mm) | ||||
| Line to chromatography | Blue White / Blue Orange White / Orange Green White / Green Brown White / Brown | ||||
| Filler | HDFE Isolation member | ||||
| Insulation Materials | HDPE | ||||
| insulation ID | 0.95mm±0.05mm | ||||
| OD | OD 6.0±0.2mm | ||||
| Sheath material | PVC | ||||
| Tension rope | nylon silk | ||||
| logarithm | 4 pairs | ||||
| Exterior color | Blue | ||||
| Printing | CAT6 UTP 4PR/24AWG VERIFIED TO EIA/TIA 568B.2 ISO/IEC 11801 EN501 001-305M | ||||
| Operating temperature | -20℃±75℃ | ||||
| Product packaging | 1000FT/ROLL | ||||
| Inner box size | 39*39*20CM | Carton size | 42*40*41CM | 2color box with a carton | |
| product manual | |||||
| 20-foot cabinet | 700ROLL | ||||
| 40-foot cabinet | 1400ROLL | ||||
