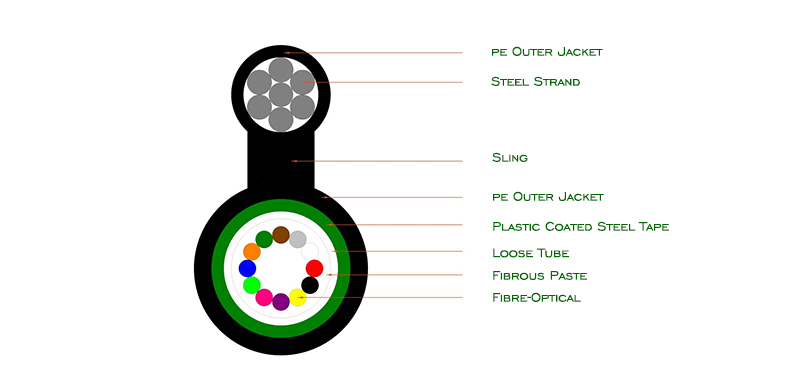

suspension into an "8" shaped PE jacket. There is no need to erect hanging wires and hooks during the laying process, and the
operation efficiency is high and the laying cost is low. The GYXTC8Y figure 8 fiber cable is very easily laid overhead between
poles and poles, between poles and buildings, between buildings and buildings.
Fiber core number | 4 | 6 | 8 | 12 | ||
Typeof optical fiber | G.652D | |||||
Design (loose casing and filling) | 1 | |||||
reinforcement | material | Phosphating steel wire | ||||
diameter（±0.05）mm | 1.2 | |||||
Connecting part diameter | material | PE | ||||
diameter（±0.05）mm | 1.5 | |||||
Loose Tube | material | PBT | ||||
diameter（±0.06）mm | 1.8 | |||||
thickness（±0.03）mm | 0.30 | |||||
Outer Jacket | material | PE | ||||
thickness（±0.2）mm | 1.35 | |||||
Optical cable size mm ±0.03 | 4.5*10 | |||||
Net weight of optical cable（±10）kg/km | 47 | |||||
Allowable tensile strength (N) | 1500 | |||||
Allowable flattening force (N/100mm) | 1000 | |||||
Application occasion | aerial | |||||
weaken | 1550nm | ≤0.22dB/ km | ||||
bend radius | dynamic | 20.0 times cable diameter | ||||
static | 15.0 times cable diameter | |||||
temperature range（℃） | Installation temperature | -60℃+85℃ | ||||
Transportation & storage | -60℃+85℃ | |||||
operating temperature | -60℃+85℃ | |||||
number | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Grey | White |
number | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Purple | Pink | Turquoise |
Loose tube chromatography
number | 1 |
Color | White |
optical fiber characteristics (ITU-TG.652D)
ltem | unit | parameter | |
G.652D | |||
Field diameter | 1310nm | m | 9.2± 0.4 |
1550nm | m | 10.4± 0.5 | |
cladding diameter | m | 125± 1 | |
Cladding roundness | % | ≤1 | |
Core/cladding concentricity deviation | m | ≤0.6 | |
Coating diameter | m | 242± 7 | |
Coating/cladding concentricity deviation | m | ≤12 | |
Cut-off wavelength of optical cable | nm | ≤1260 | |
attenuation coefficient | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.22 | |
Tension screening test | kpsi | ≥10 | |
Other parametersmeet the standard.ITU-T G.652D
numb er | item | test method | acceptance requirement (AR) |
1 | Stretching IEC 60794-1-2-E1 | -Load: 600 N (long term) G (short term) G is the weight of optical cable per kilometer. When g < 1,500 N, the load is 1,500 N. When g is 1,500 ~ 3,000 N, the load is the cable weight. When g > 3,000 N, the minimum load | Under long-term tensile load: -Optical fiber has no obvious str ain. -No obvious additional attenuatio n. Under short-term tension load: -additional attenuation: 0.1db After the test is completed: |
is 3,000 N. -Length of the subject: 50 meters -Duration of load: ≥1 minute | -No obvious residual additional a ttenuation. -No obvious residual fiber strain. -No broken fiber and visible shea th cracking. -Residual strain of optical cable: 0.08% | ||
2 | Flatten IEC 60794-1-2-E3 | -Load: 300 N (long term) 1000 N (short term) -Duration of load: ≥1 minute | Under long-term flattening load: -No obvious additional attenuatio n. Under short-term flattening load: -additional attenuation: 0.1db After the test is completed: -No obvious residual additional a ttenuation. -No broken fiber and visible sheath cracking. |
3 | Lash IEC 60794-1-E4 | -Impact points: 5 points -Number of impacts per point:1 -Impact energy: 4.5 N·m | After the test is completed: -No obvious residual additional a ttenuation. -No broken fiber and visible sheath cracking. |
4 | Repeated bending IEC 60794-1-2-E6 | -Mandrel radius: 20 times the diameter of optical cable -load: 15kg -Length of subject: 1m -Bending rate: 2 seconds/time -Bending times: ≥30 times -Bending angle: 90 | After the test is completed: -No obvious residual additional a ttenuation. -No broken fiber and visible sheath cracking. |
5 | turn around IEC 60794-1-E7 | -Length of subject: 1m -load: 15kg -Torsion angle: 180 -Twisting times: ≥10 times | After the test is completed: -No obvious residual additional a ttenuation. -No broken fiber and visible sheath cracking. |
6 | infiltration test IEC 60794-1-F5B | -Water column height: 1m -Length of sample: 3m -Test time: 24 hours | -No seepage. |
7 | High and low temperature cycle test IEC 60794-1-F1 | -temperature step: +20oC→-40oC→+70 oC →+20oC -Duration of each temperature point: 12 hours -Number of cycles: 2 | -40~+70 oC additional attenuation 0.1 db/km @ 1550 nm After the test is completed: -No obvious residual additional a ttenuation. -No broken fiber and visible sheath cracking. |
8 | Drip test IEC 60794-1-E14 | -Sample length: 30 cm -Temperature: 70 C 2 C -Test time: 24 hours | -No trickle. |
Marking
The characters printed on the optical cable shall be marked at intervals of 1m, and the length shall be numbered in sequence. The starting number of any coil ordering length should start with zero meters. The accuracy of length measurement should be controlled within 1%. Spray printing on optical cable shall include the followingcontents.
- name of manufacturer
- optical cable model
- manufacturing year and month
- Length per meter marked along the optical cable
Panju
Fiber core number | Wooddisc diameter MM | Widthof wooden plate MM | segment length M | package |
4-12 | 600 | 550 | 2000(m) | Clamping plate sealing plate |
