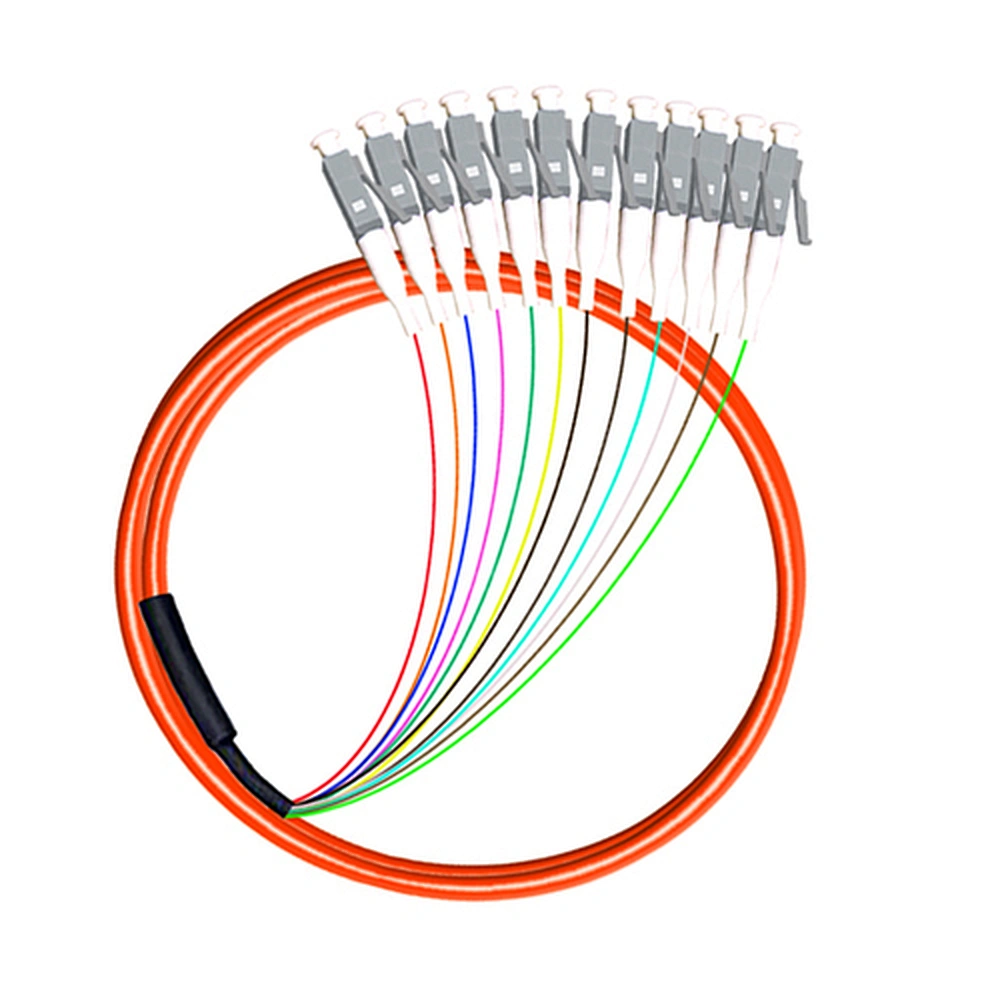

FTTH Singlemode Multimode SC UPC Bundle Pigtail 12 Core 12 Color Fiber Optic Pigtail
SC UPC Pigtail
Connector type:LC SC FC or as required
Fiber type:Singlemode /Multimode
Cable color:SM-Yellow, OM1/OM2-Orange, OM3-Aqua green, OM4-Purple or OEM color
Cable length:0.5m/1m/2m/5m/customized
Cable jacket material:PVC, LSZH, OFNR, OFNP
Cable diameter:0.9mm/1.2mm/1.6mm/1.8mm/2.0mm/3.0mm etc.
Fiber type:Singlemode /Multimode
Cable color:SM-Yellow, OM1/OM2-Orange, OM3-Aqua green, OM4-Purple or OEM color
Cable length:0.5m/1m/2m/5m/customized
Cable jacket material:PVC, LSZH, OFNR, OFNP
Cable diameter:0.9mm/1.2mm/1.6mm/1.8mm/2.0mm/3.0mm etc.
Quantity
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Features:
– Low insertion loss and high return loss;
– Good repeatability & interchangeability;
– PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
– Suitable for high-speed, high-capacity optical fiber transmission system;
– Provide single mode/ multimode patch cord and pigtails;
– Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
– Length/Type: according to customers' demands.
– Good repeatability & interchangeability;
– PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
– Suitable for high-speed, high-capacity optical fiber transmission system;
– Provide single mode/ multimode patch cord and pigtails;
– Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
– Length/Type: according to customers' demands.
Specification:
| Item | Parameter |
| Model Number | SC/UPC-SM-SX-12F-LSZH-0.9mm |
| Brand Name | OTOP/OEM |
| Connector type | LC SC FC or as required |
| Fiber type | Singlemode /Multimode |
| Cable color | Yellow or as required |
| Cable length | 0.5m/1m/2m/5m/customized |
| Cable jacket material | PVC, LSZH, OFNR, OFNP |
| Cable diameter | 0.9mm/2.0mm/3.0mm/customized |
| Wavelength | 1310/1550nm |
| Insertion loss | ≤0.3dB |
| Return loss | UPC≥50dB, APC≥60dB |
| Repeatability | ±0.10dB |
