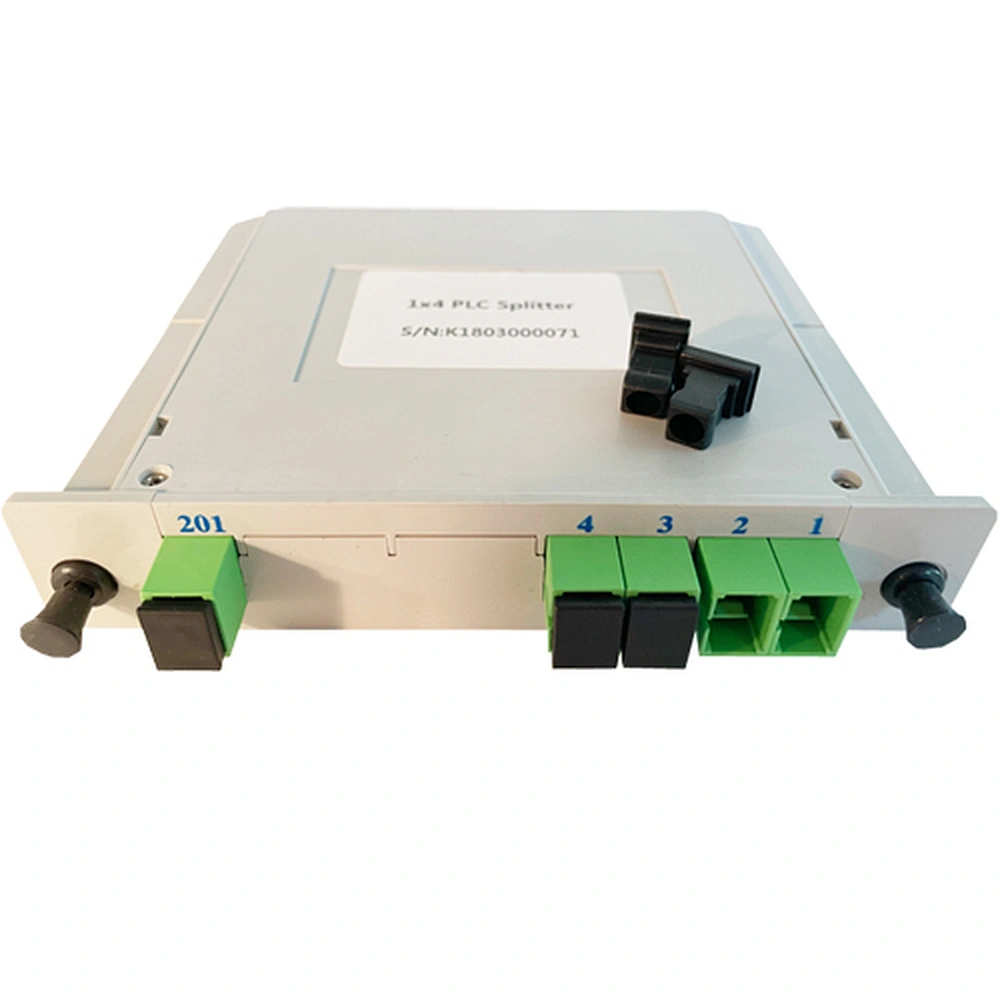

FTTH Factory Direct 1x4 SC APC Connector G657A1 Fiber Optic LGX PLC Splitter
LGX PLC Splitter
Type of fiber:G657A1
Type of connector:SC/APC
Wavelenth:1260-1650nm
Insertion Loss:7.4dB
Operating temperature:-40℃~85℃
Type of connector:SC/APC
Wavelenth:1260-1650nm
Insertion Loss:7.4dB
Operating temperature:-40℃~85℃
Quantity
Description：
PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.
Features：
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Applications：
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Applications：
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
| Types | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 |
| Test wavelength | 1310nm | ||||
| Working wavelength | 1260nm~1650nm | ||||
| Interface model | SC/UPC | ||||
| Insertion loss (dB) (P/S level) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 |
| Loss uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 |
| Return loss (dB) (P/S level) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization dependent loss (dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.25 |
| Directionality (dB) | 55 | 55 | 55 | 55 | 55 |
| Wavelength dependent loss (dB) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Temperature stability (dB) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Features | Good temperature stability | ||||
| Low insertion loss, high return loss | |||||
| Good interchangeability, good repeatability | |||||
