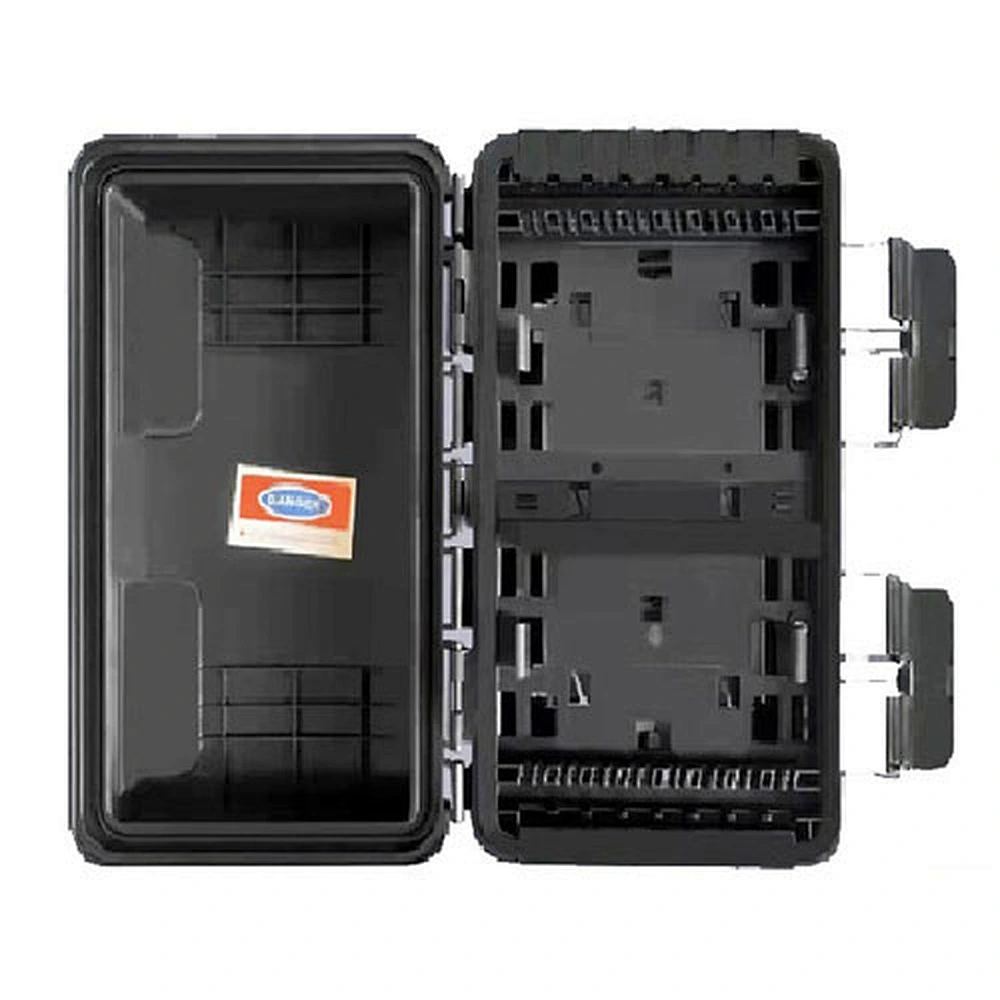

3 in 3 out 16 cores fiber splitter distribution box FTTH termination Nap box
SZOTOP067
The fiber terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Quantity
Features:
* Water-proof design for outdoor uses.
* Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer.
* Easy to operate. Usually installed as wall mounted in the building or at the green belt.
* The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality.
* SMC complex plastic or Cold rolled plate without material optional.
* Fixed cable and protection.
* Protect optical fiber splice joint.
* Termination function of fiber core.
* Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer.
* Easy to operate. Usually installed as wall mounted in the building or at the green belt.
* The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality.
* SMC complex plastic or Cold rolled plate without material optional.
* Fixed cable and protection.
* Protect optical fiber splice joint.
* Termination function of fiber core.
Application：
* Telecommunication Networks
* Communication System
* Test Equipment
* Fiber CATV
* FTTH
* Communication System
* Test Equipment
* Fiber CATV
* FTTH
Specification:
| Product name | Fiber Optic Distribution Box | IP Rate | IP65 |
| Product Model | SZOTOP067 | Product Size | 325*250*120 mm |
| Ports | 3 inlet port / 3 out port | Packing Quantity | 10 pcs / carton |
| 60*51*35cm 14.6kg | |||
| Compatible with | 1:16 cassette splitter or | Material | PC ABS |
| 16 core adapter pigtail | |||
| Installation Type | wall / pole-mounted | Net weight | 1.45kg |
| Accessories | 1. Wall mounting kits : 4 pieces | ||
| 2. Screws : 4 pieces | |||
| 3. Cable tie: 10 pieces | |||
| 4. Heat shrink protective sleeves: 16 pieces | |||
| 5. Key :1 piece | |||
| 6. Inlet accessories:1 set | |||
| 7.Without splitter and adapter,If necessary, please contact the salesman. | |||
