24 Core Fiber Optical Terminal NAP Distribution Box with 1x24 PLC Splitter
SZOTOP045

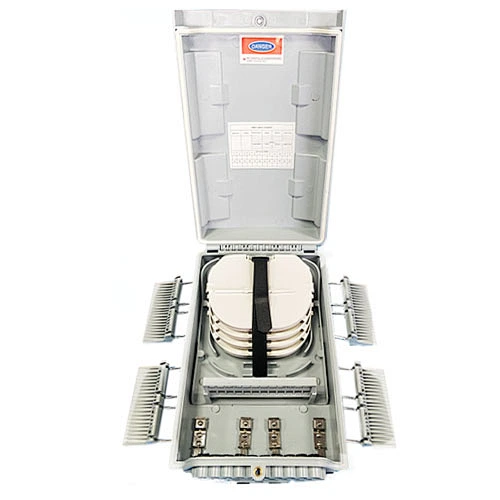

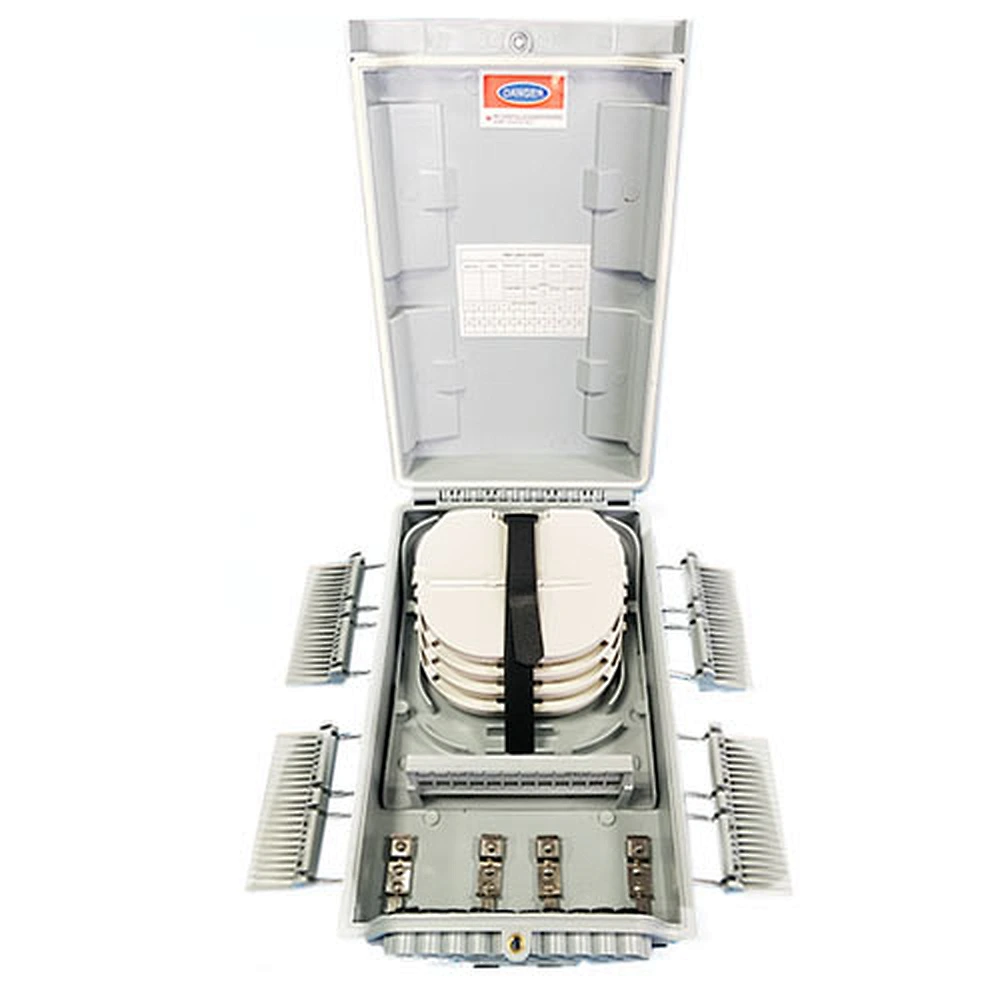

The fiber terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management forthe FTTx network building.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management forthe FTTx network building.
Quantity
Description:
This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Features:
1、Total enclosed structure.
2、Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, rosh.
3、Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4、Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter .installation, easy maintenance.
5、Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6、Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses.
Specification:
| Product Name | 24 core optics fiber termination box ftth |
| Material | PC/ABS/PC+ABS |
| imension (mm): | 300*245*100 mm |
| Weight | 1.25KG |
| Max Capacity | 24 Core |
| Maximum install tray Number | 4 |
| Ports | 4 inlet 24 outlet |
| Certification | Ip68/Ios9001 |
