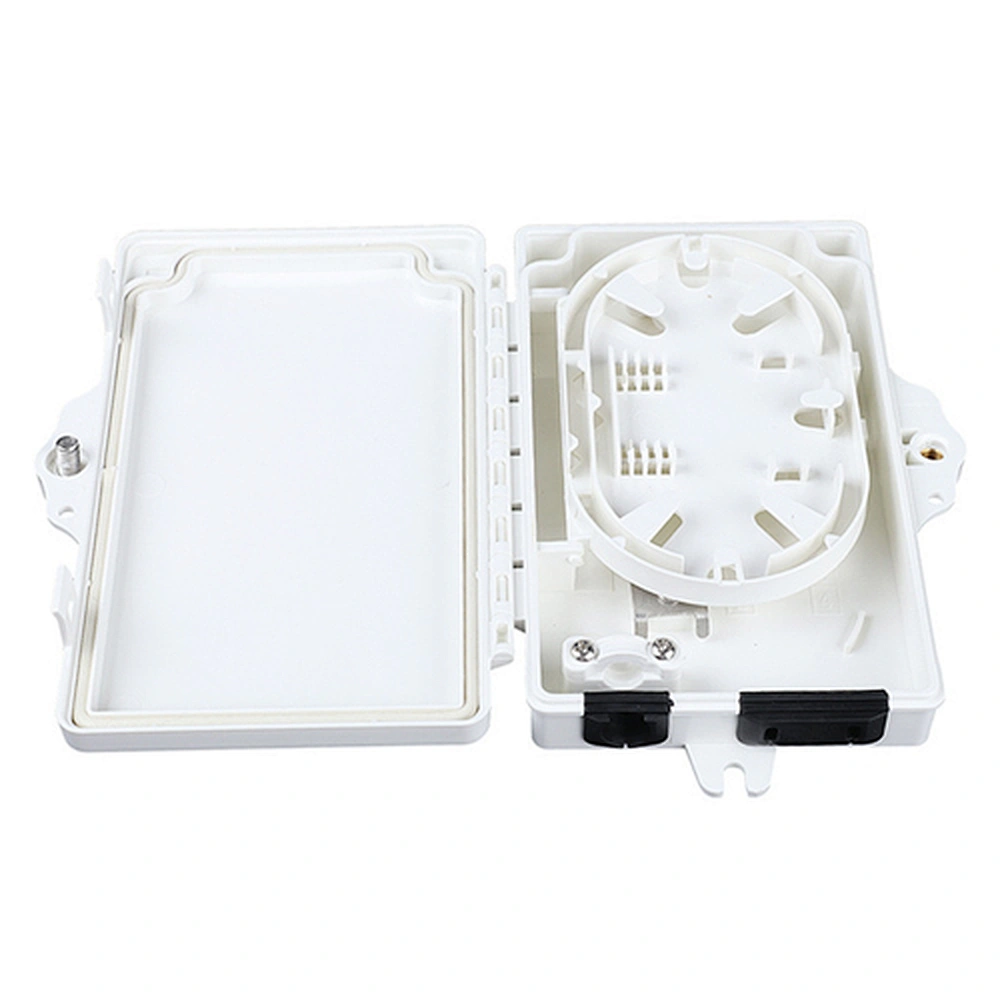

2 cores wall mounted 1 to 2 optical terminal box ftth fiber optic distribution box
SZOTOP026
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Quantity
| Product Name | 2 core fiber optic distribution box(termination box) |
| Shape | Total enclosed structure, be in nice shape |
| size | 168mm(H)*102mm(W)*32mm(D) |
| Weight | 300g |
| Material | PC+ABS |
| Material characteristic | 1.wet-proof, water-proof, dust-proof, protection level up to IP65 |
| 2.Construction-lightweight plastic offers strength | |
| 3.Resistance to chemical and U.V attack | |
| 4.Wall mounting |
Accessories:
1. Wall mounting kits : 3 pieces
2. Screws : 3 pieces
3. Cable tie: optional
4. Heat shrink protective sleeves: optional
5. Protection tube:1 pieces
6. Key :1 piece
Features:
1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Application:
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks
