Advantages:
1.Compact size and decent appearance
2.CW, 270Hz,1KHz,2KHz
3.modulation at other wavelengths.
4.High stability of the output powe
5.Backlight LCD display supports night operation
6.Large LCD, easy operation
7.Alternative 10 minutes Auto-off function conserving battery life
Applications:
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specifications:

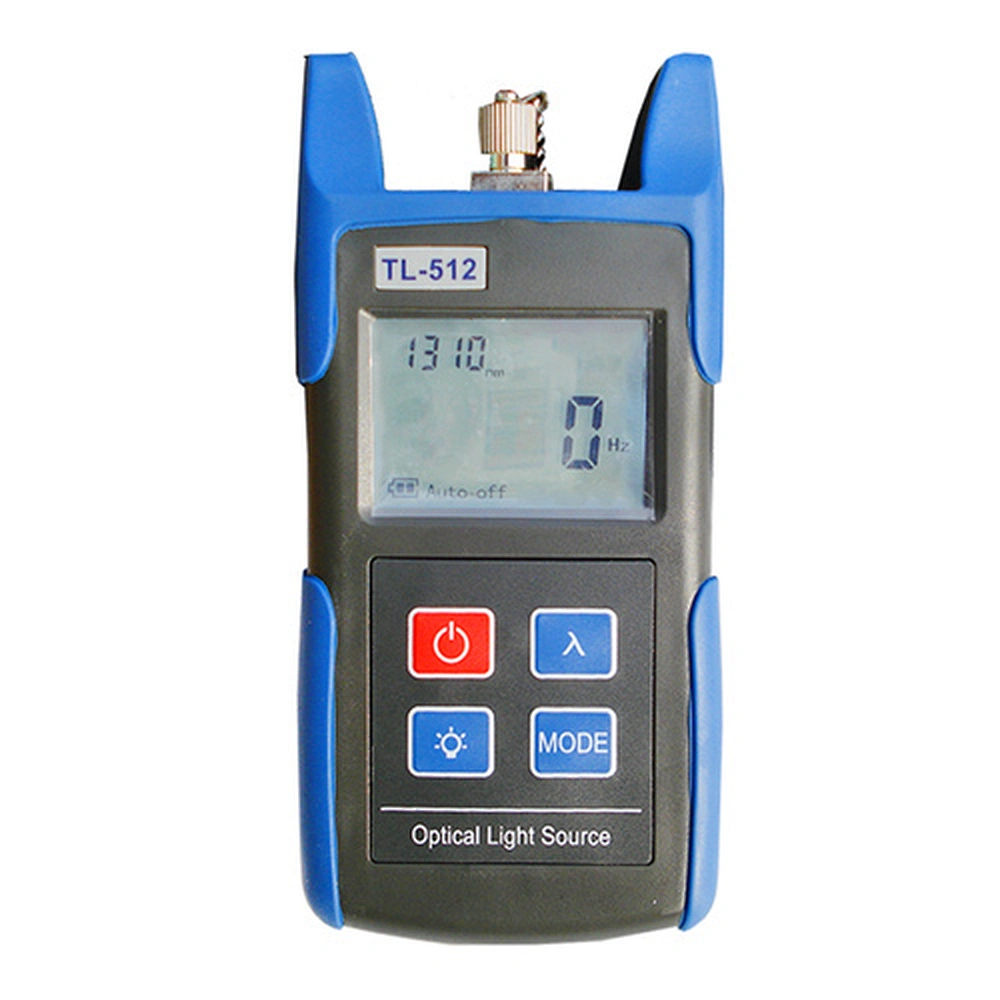

Model | Optical Light Source |
Emitter | FP-LD |
wavelength (nm) | 1310/1550nm or 850/1300nm |
Connector | FC(SC/ST as optional) |
Output power | >=-7dBm@1310/1550nm |
Output stability(dBm) | +-0.04 @20 Degree @15min |
Modulation | CW/270Hz/1KHz/2KHz@others |
Power | 3pcs AAA batteries |
Fiber type | SM/MM |
Working hours(h) | 40 |
Working temperature(Degree) | -10~+50, 0 to 95%RH (no condensing) |
Storage temperature(Degree) | -20~+70, 0 to 95%RH (no condensing) |
Dimension(mm) | 130×63×29 |
Weight (g) | 160 |
