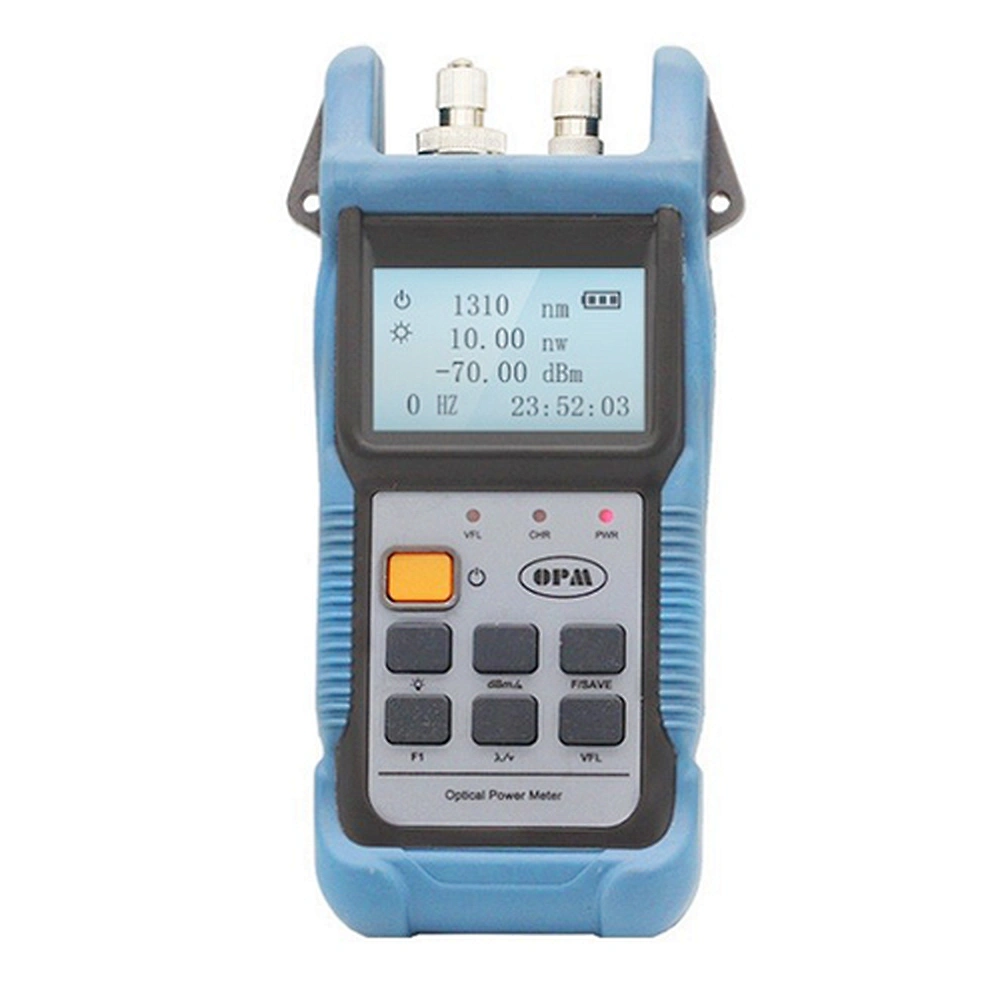

Optical Power Meter Fiber Optic Multimeter Tester Integrated With Visual Fault Locator Source
OP503
OPM VFL all in one
Quantity
Introduction:
Optical Power Meter, 10mw red light combined.
Multi-wavelength precision measurement.
Logarithmic or linear power measurement dBm power measurement xW, and with the screen display.
Relative power measurement dB.
With real-time clock function, can display the current time. Recording time available for the storage of data.
255 sets of test data storage.
Background management software, you can save, print the test results, you can complete the instrument parameters self-calibration.
Handheld ergonomic design, graphic dot matrix LCD display, easy to use.
LED backlight.
Optional automatic shutdown and auto-off backlight, backlight off automatically 60 seconds, 3 minutes automatic shutdown.
Fast response, no warm-up.
| Wavelength Range(nm) | 800~1600 | |
| Type of probe | InGaAs | |
| Power Measurement Range(dBm) | -70~+10 | -50~+26 |
| Uncertainty | ±5% | |
| Standard wavelength (nm) | 8,509,801,300,131,010,000,000 | |
| Display Resolution | Linear Display: 0.1% of the number display: 0.01dBm | |
| Red light section | ||
| Wavelength | 650nm±10nm | |
| Light source | FP-LD laser | |
| Output Power | 1mw 10 mw 20mw | |
| Connector | 2.5mm FC / PC universal adapter | |
| Operating Mode | CW or modulated light continuous light | |
| Modulation frequency | 2Hz | |
| General Specifications | ||
| Working Temperature (°C) | -20~+70 | |
| Storage Temperature(°C) | -30~+80 | |
| Automatic shutdown time (min) | 3 | |
| Battery operating time (h) | 260 (backlight off) | |
| size(mm) | 175*79*46 | |
| power supply | High-capacity rechargeable lithium battery, 3.7V 1600mAH. | |
| weight(g) | 260 | |
