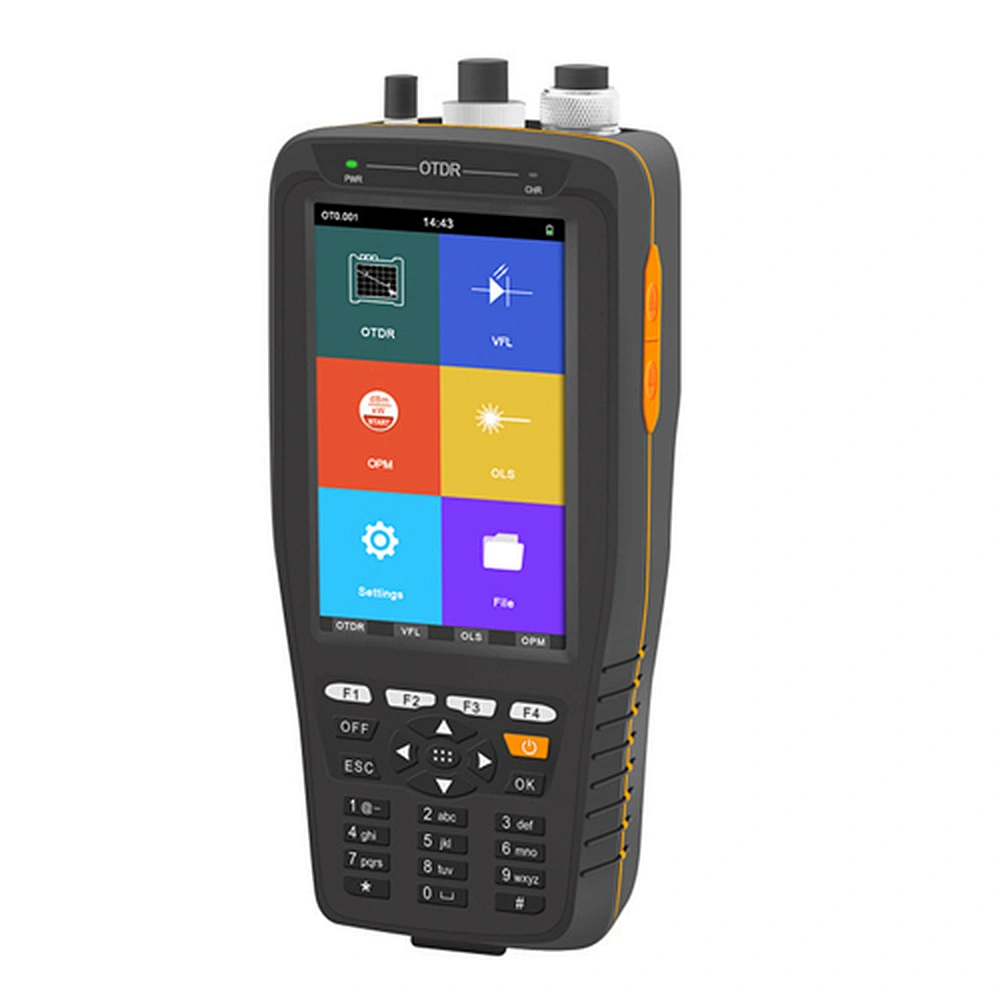

24/22dB 1310/1550nm SM Mini OTDR de Fibra Optica With OPM VFL OLS fuctions Optical Time Domain Reflectometer
OP290D
1310/1550nm, 24/22dB, Touching screen
Quantity
| Wavelength | 1310/1550nm |
| Dynamic Range | 24/22dB |
| Active Test | no |
| Measure distances | 0-60km |
| Fiber type | SM |
| Type of Fiber | 9/125um Single-mode optical fiber |
| Type of Connectors | FC/PC/; SC/PC |
| Peak Value of laser | >=30mW |
| UOM of Measurement | Meter,Feet,Mile |
| Dead Zone of ReflectionEvent | 2m |
| Dead Zone of attenuation Event | 12m |
| Accuracy Distance | About +_(1m+2 *10(-4)* distance) |
| (Reflection Event) | |
| Number of test records saved | 100 |
| Power Supply | 8.4V Li-ion Battery4400mAH |
| Battery working time | >=5,000 times of measurements |
| Temperature | Operate :-5~50 ,Store:-10~60 |
| Humidity | 0~85%(Non-condensing) |
| Weight(g) | 300 |
Visual Fault Locator
Wavelength | 650nm |
VFL OutputPower | >=10mW |
Mode | 0Hz，1Hz，2Hz |
Fiber type | SM/MM |
Optical Power Meter
Measurement range dBm | -70～+10 dBm | -50～+26 dBm |
Wavelength range（nm） | 800～1650 | |
Calibrated wavelength | 850nm、1300nm、1310nm、1490nm、1550nm、1625nm（other wavelength will be on request） | |
Detector | InGaAs | |
Accuracy | <±3%（-10dBm、22℃） | |
Resolution | Linearity：0.1%，Non-linearity：0.01dBm | |
connector | Movable FC/PC SC/PC，( ST as Optional) | |
Optical Light Source
Emitter | FP-LD |
wavelength (nm) | 1310/1550nm |
Connector | FC/PC（SC/ST as optional） |
Output power | ≥-5dBm |
Output stability(dBm) | ±0.04@20℃@15min |
Modulation | CW/270Hz/1KHz/2KHz |
Fiber type | SM |
