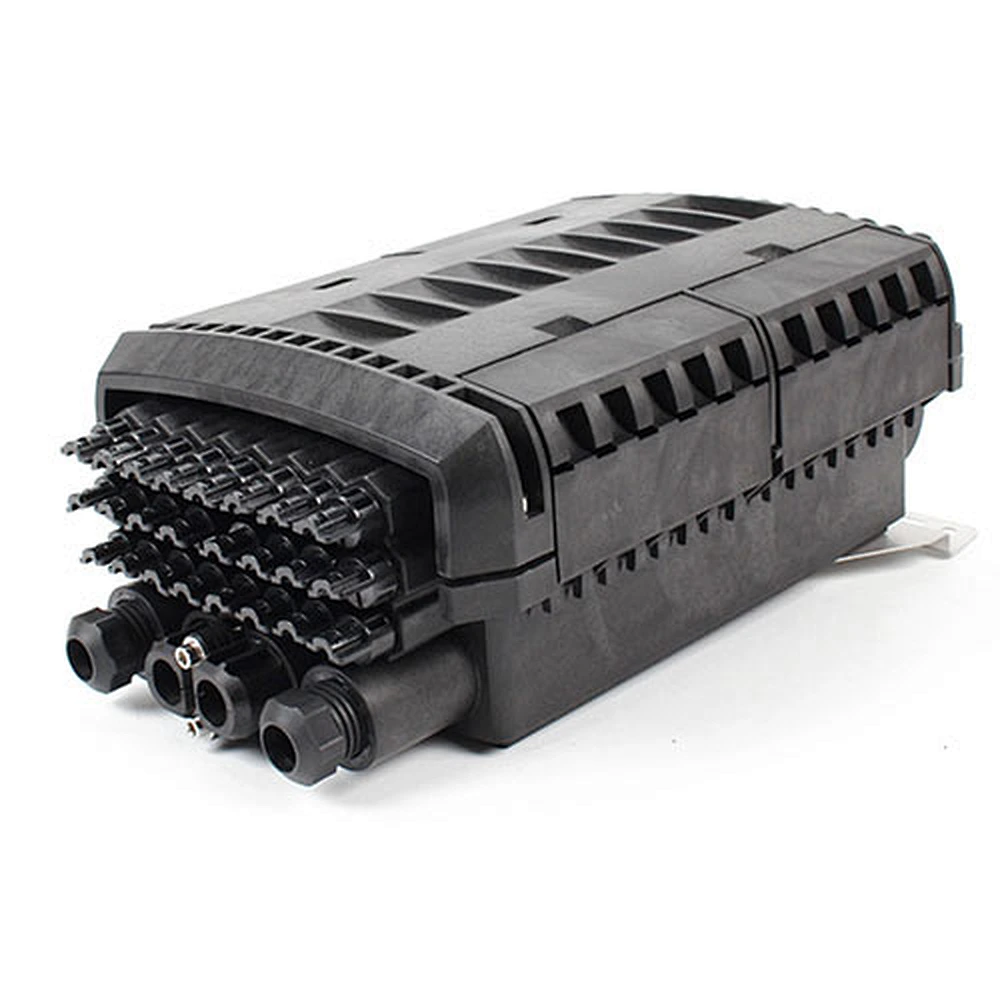

FTTH 1 to 24 Fiber Optic Cable Distribution Box Joint box Ftth Termination Nap Terminal Box
SZOTOP056
This fiber terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid
protection and management for the FTTX network building.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid
protection and management for the FTTX network building.
Quantity
Features
1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor
.installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses
1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor
.installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses
| Product name | Fiber Optic Distribution Box | IP Rate | IP65 |
| Product Model | SZOTOP056 | Product Size | 325*250*120 mm |
| Ports | 4 inlet port / 24 out port | Packing Quantity | 10 pcs / carton |
| 60*51*35cm 14.6kg | |||
| Compatible with | 2pcs 1:12 cassette splitter or | Material | PC ABS |
| 2pcs 12 core adapter pigtail | |||
| Installation Type | wall / pole-mounted | Net weight | 1.45kg |
| Accessories | 1. Wall mounting kits : 4 pieces | ||
| 2. Screws : 4 pieces | |||
| 3. Cable tie: 10 pieces | |||
| 4. Heat shrink protective sleeves: 24 pieces | |||
| 5. Key :1 piece | |||
| 6. Inlet accessories:1 set | |||
| 7.Without splitter and adapter,If necessary, please contact the salesman. | |||
