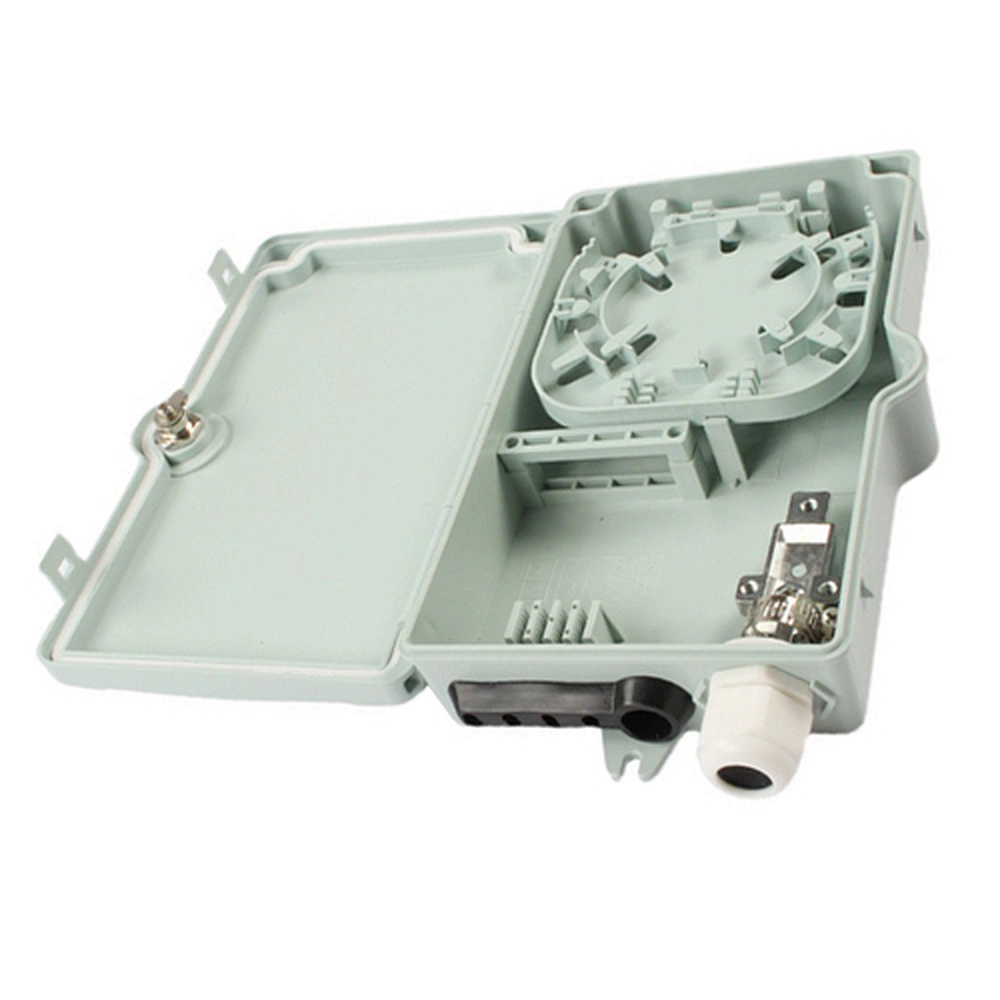

4 core outdoor optical cable terminal box plastic waterproof 4 optical fiber splitter distribution box
SZOTOP029
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Quantity
Feature
* Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer.
* Easy to operate. Usually installed as wall mounted in the building or at the green belt.
* The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality.
* SMC complex plastic or Cold rolled plate without material optional.
* Fixed cable and protection.
* Protect optical fiber splice joint.
* Termination function of fiber core.
Application
* Telecommunication Networks.
* Communication System.
* Test Equipment.
* Fiber CATV.
* FTTH.
| Product Name | 4 core fiber optic distribution box(termination box) |
| Shape | Total enclosed structure, be in nice shape |
| size | 186mm(H)*116mm(W)*41mm(D) |
| Weight | 3350g |
| Material | PC+ABS |
| Material characteristic | 1.wet-proof, water-proof, dust-proof, protection level up to IP65 |
| 2.Construction-lightweight plastic offers strength | |
| 3.Resistance to chemical and U.V attack | |
| 4.Wall mounting |
