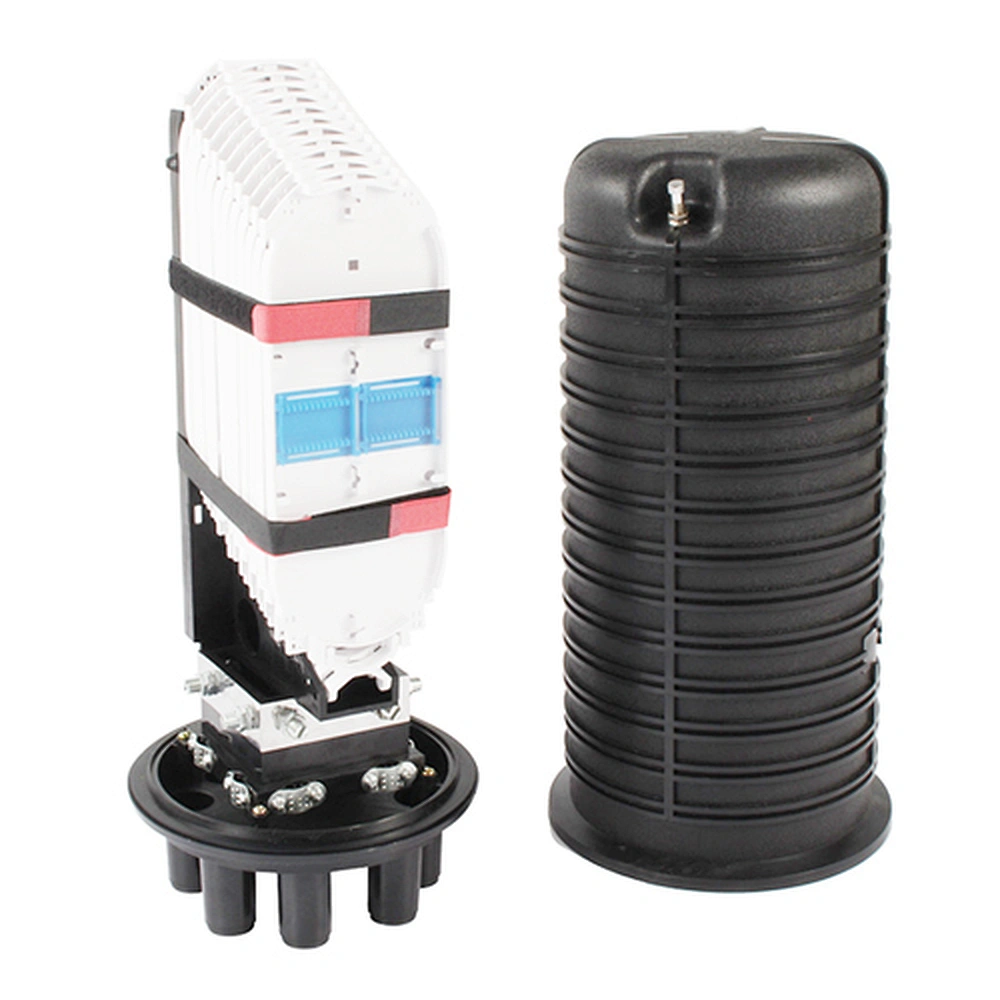

288 core Fiber optic cable joint closure 1 in 6 out fiber optic enclosure dome Splice closure
SZOTOPC220
Fiber optic splice closures are used throughout the network, including the fiber trunk, feeder, distribution, and last mile segments. Our closure are normally used to connect optical cables in the long-distance transmission network, closure also routes and branches optical fibers.fiber to the home (FTTH) is a type of point to multiple points (P2MP) network with many branching points, so closures are widely used to implement cable distribution, optical fiber splitting, and flat drop cable output.
Quantity
Fiber Optic Splice Closure:
The cable box is mainly used for optical fiber connection and protection. This kind of box is suitable for the connection of overhead, pipe and buried straight and branch.The box body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.The product can be opened again and reused after installation.
Features:
◆Widely applied in aerial,direct and branch connection for cables lower than 360 fibers.
◆Suitable for ordinary fiber and ribbon fiber.
◆Fully kitted with all parts for convenient operation.
◆Overlap structure in splicing tray for easy installation.
◆Fiber-bending radium guaranteed more than 40mm.
◆Easy to install and re-entry with a common can wrench.
◆Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
◆Stand up to severe condition of moisture,vibration and extreme temperatures.
◆Mechanical sleeve or heat shrinkable fixing sleeve for optional.
◆Widely applied in aerial,direct and branch connection for cables lower than 360 fibers.
◆Suitable for ordinary fiber and ribbon fiber.
◆Fully kitted with all parts for convenient operation.
◆Overlap structure in splicing tray for easy installation.
◆Fiber-bending radium guaranteed more than 40mm.
◆Easy to install and re-entry with a common can wrench.
◆Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
◆Stand up to severe condition of moisture,vibration and extreme temperatures.
◆Mechanical sleeve or heat shrinkable fixing sleeve for optional.
Specification:
| Product Name | 288C Fiber Optic Splice Closure | |||
| Size（mm） | 550mm（h）*155mm（d） | |||
| The material | PP | |||
| Ports | 1 inlet 6 outlet | |||
| Structure | Mechanical seal | |||
| Specifications（No. of Fiber） | 288C | |||
| The net weight（kg） | 2.79kg | |||
