1x2 1x4 1x8 1x16 1x32 1x64 Plc Splitter Wavelength 1260 - 1650nm Bare Fiber Type Plc Optic Splitter
Plc Splitter
Port:1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss:≤17.4dB
Return Loss:≥50 dB
Mode:Single mode; Multi-mode
Certification:CE/ROHS/ISO9001/ANATEL
Fiber:G657A1
Fiber Length:1m,1.5m or customized
Single-Mode Fiber:SM
Multi-Mode Fiber:MM
Insertion Loss:≤17.4dB
Return Loss:≥50 dB
Mode:Single mode; Multi-mode
Certification:CE/ROHS/ISO9001/ANATEL
Fiber:G657A1
Fiber Length:1m,1.5m or customized
Single-Mode Fiber:SM
Multi-Mode Fiber:MM
Quantity
Specification:

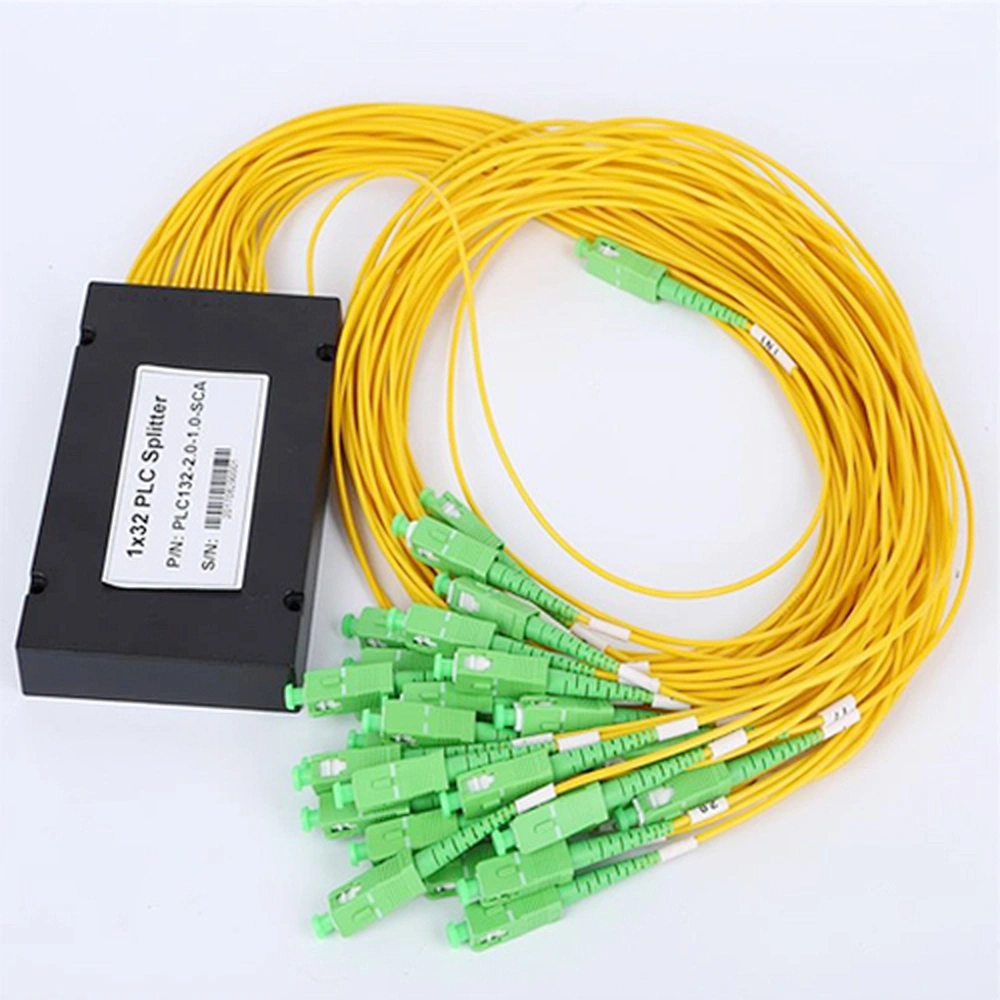

PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical
input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON
networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high
stability and high reliability, meet various application requirements in different environments.
input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON
networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high
stability and high reliability, meet various application requirements in different environments.
Application:1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
Types:1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
Feature:1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
