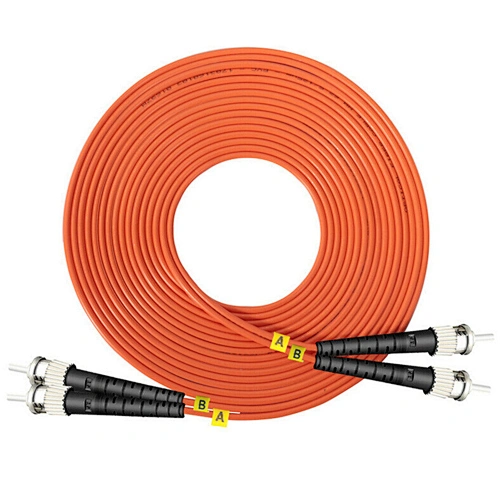

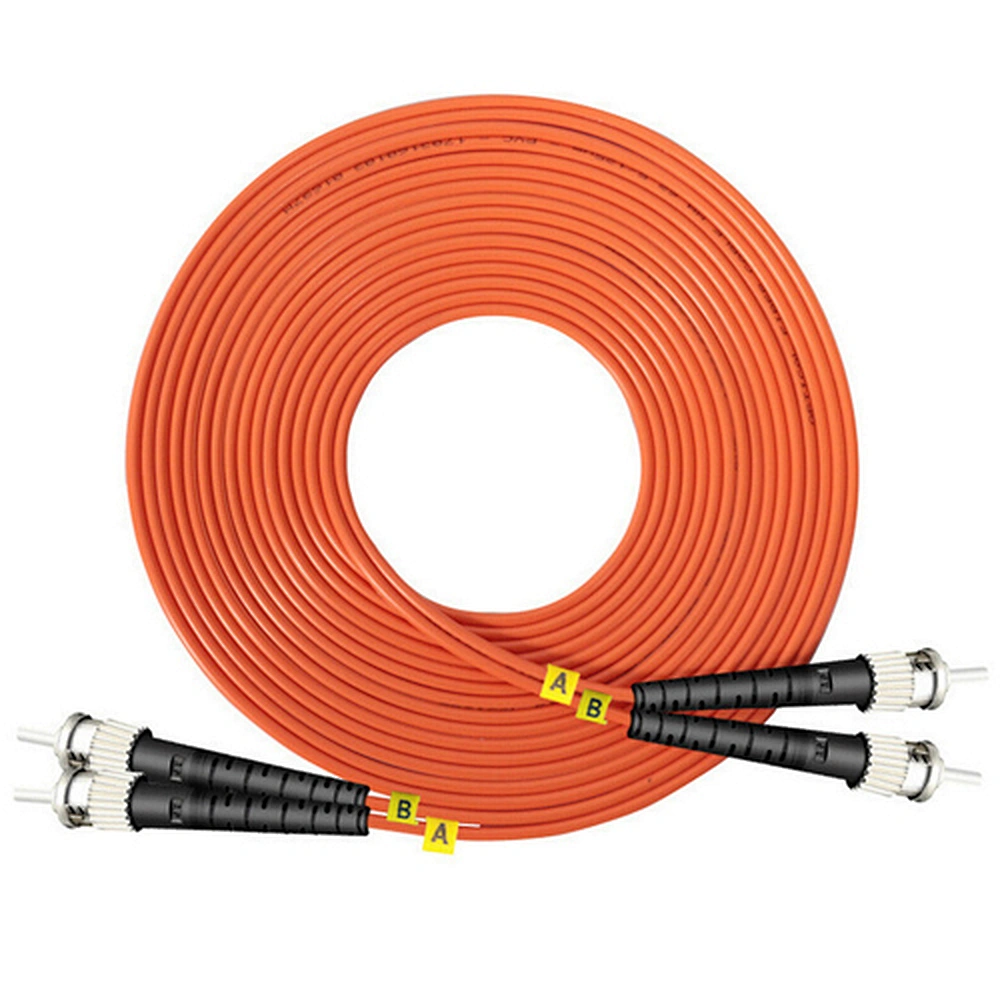

Duplex OM3 OM4 2.0 3.0MM 50/125um 1/2/3/4/5/6m Multimode Fiber Jumper OEM/ODM Fiber Optic Patch Cord
OM3 OM4
Length:1m/2m/3m...
Diameter:0.9/2.0/3.0mm
Package:Plastic Bag
Connector Type:Ceramic
Insertion Loss:<0.3dB
Return Loss:>55dB(APC)/>50dB(APC)
Fiber:9/125um, 50/125um,62.5/125um,ect
Color:Yellow/White/OEM
Diameter:0.9/2.0/3.0mm
Package:Plastic Bag
Connector Type:Ceramic
Insertion Loss:<0.3dB
Return Loss:>55dB(APC)/>50dB(APC)
Fiber:9/125um, 50/125um,62.5/125um,ect
Color:Yellow/White/OEM
Quantity
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652 / G.657) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Meterial | LSZH/OFNR/PVC | |
| Connector Type | FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losee(dB) | ≤0.25dB | ≤0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
| Return Loss(dB) | ≥50dB(PC/UPC) | ≥40dB(PC/UPC) |
| TIA/EIA-455-107 | ≥60dB(APC) | |
| Exchange-ability | ≤0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch Cord) | |
| Operating Temperature(℃) | -10~+70 | |
| Storage Temperature(℃) | -40~+85 | |
| Package | 1 pieces/bag | |
| All values specified are with connectors | ||
