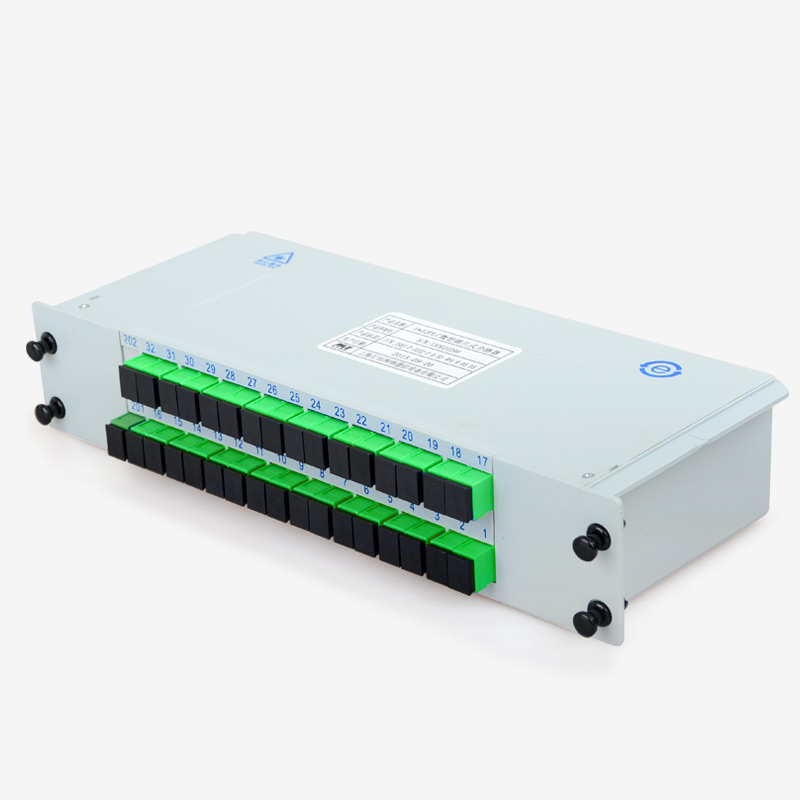

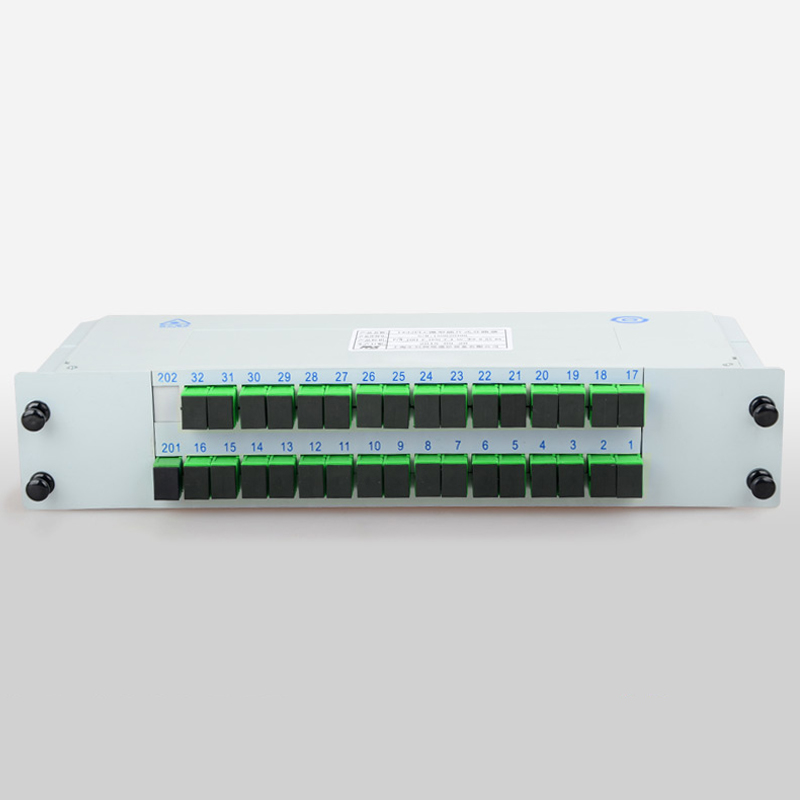

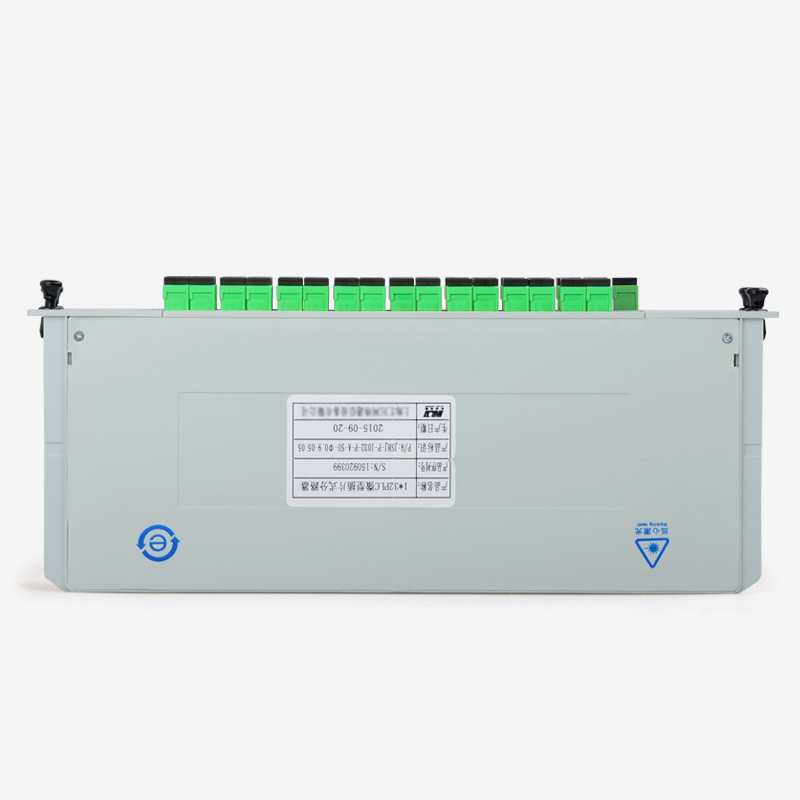

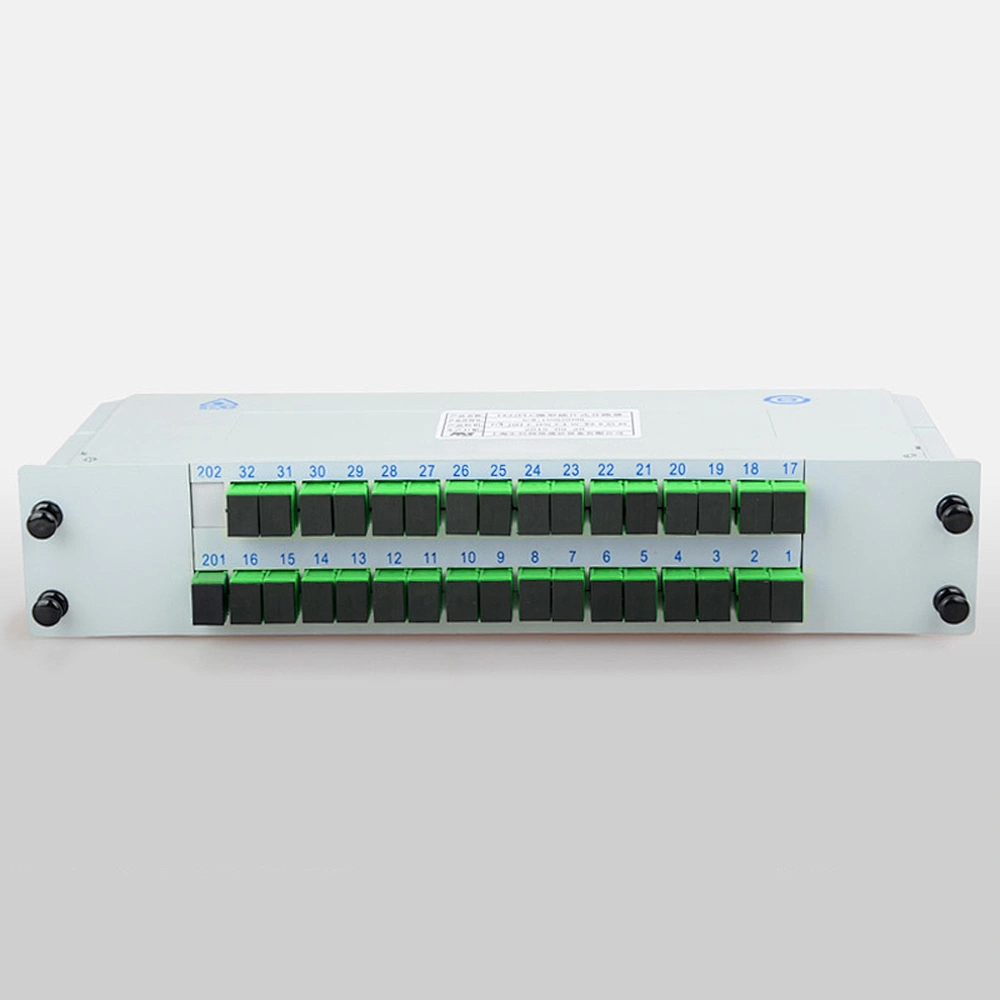

Optical Fiber Splitter Fibra Optica 1X32 1*32 SC APC ABS Box Ftth Splitter Plc
OP-PLC-CKSA32
Product name:Plc Splitter ABS Box SC Connectors Cassette Type
Connector type:SC UPC /SC APC LC UPC/LC APC
Type of Connector:FC SC LC ST
Connector Surface Design:PC/UPC/APC
Fiber Diameter:250um/900um/2.0mm/3.0mm
Splitter type:1x4 1x8 1x16 1x32 1x64 1x128
Pigtail Length:1.5m 2m 3m or customized
Fiber Type:G657A
Material:ABS
Application:FTTH, FTTB, FTTO, FTTX
Connector type:SC UPC /SC APC LC UPC/LC APC
Type of Connector:FC SC LC ST
Connector Surface Design:PC/UPC/APC
Fiber Diameter:250um/900um/2.0mm/3.0mm
Splitter type:1x4 1x8 1x16 1x32 1x64 1x128
Pigtail Length:1.5m 2m 3m or customized
Fiber Type:G657A
Material:ABS
Application:FTTH, FTTB, FTTO, FTTX
Quantity
Introduction:

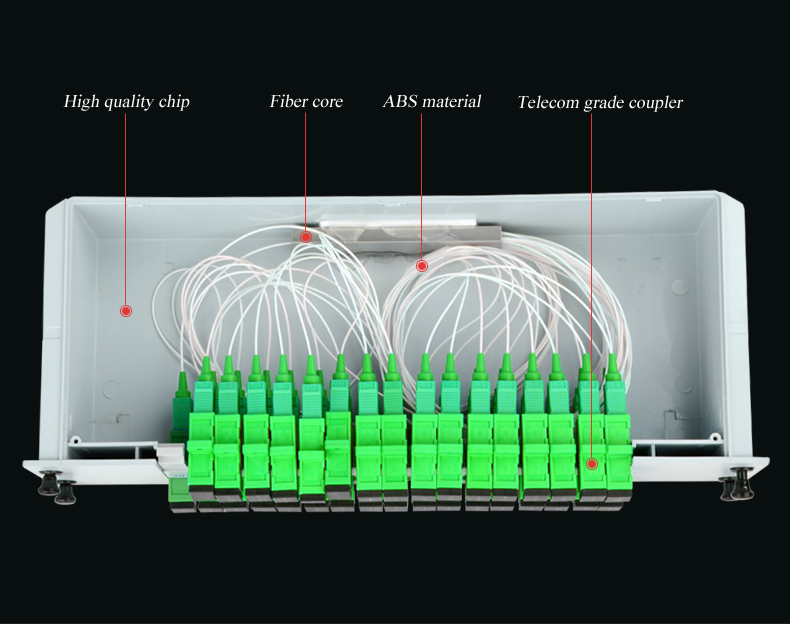

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.
Application:
1. LAN, WAN and Metro Networks;
2. FTTH project & FTTX Deployments;
3. CATV System;
4. GPON, EPON;
5. Fiber Optic Test Equipment;
6. Data-base Transmit Broadband Net.
Product Features:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
Wide Operating Temperature:
From -40℃to 85℃
High Reliability and Stability
Operation conditions:
Storage/Operating Temperature: -40°C to + 85°C
Standards:
Comply with standard Telcordia GR-1209-CORE and GR-1221-CORE,RoHS requirements.
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.
Application:
1. LAN, WAN and Metro Networks;
2. FTTH project & FTTX Deployments;
3. CATV System;
4. GPON, EPON;
5. Fiber Optic Test Equipment;
6. Data-base Transmit Broadband Net.
Product Features:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
Wide Operating Temperature:
From -40℃to 85℃
High Reliability and Stability
Operation conditions:
Storage/Operating Temperature: -40°C to + 85°C
Standards:
Comply with standard Telcordia GR-1209-CORE and GR-1221-CORE,RoHS requirements.
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Fiber type | G657A | ||||||
| Working wavelength | 1260nm-1650nm | ||||||
| Standard insertion losee(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14 | ≤17.2 | ≤20.8 | ≤24 |
| P-Grade insertion losee(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17 | ≤20.4 | ≤23.7 |
| Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength dependent loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return loss(dB) | ≥50 | ||||||
| Directivity(dB) | ≥55 | ||||||
| Operating temperature | -40℃~+85℃ | ||||||
| Item | Type of connector | Length*Width*Height(mm) |
| 1x2 | SC/LC/FC | 130*100*25mm |
| 1x4 | SC/LC/FC | 130*100*25mm |
| 1x8 | SC/LC/FC | 130*100*25mm |
| 1x16 | SC/LC/FC | 130*100*50mm |
| 1x32 | SC | 130*100*102mm |
| 1x32 | SC | 267*100*50mm |
| 1x32 | LC | 130*100*50mm |
| 1x64 | LC | 130*180*100mm |
