OP-PLC-CGGSA2 - plc splitter

1X2/4/8/16/32/64 Micro Type Optical Fiber Splitter Single Mode G652D G657A1 SC APC SC UPC Connector PLC Splitter

Model NO. OP-PLC-CGGSA2

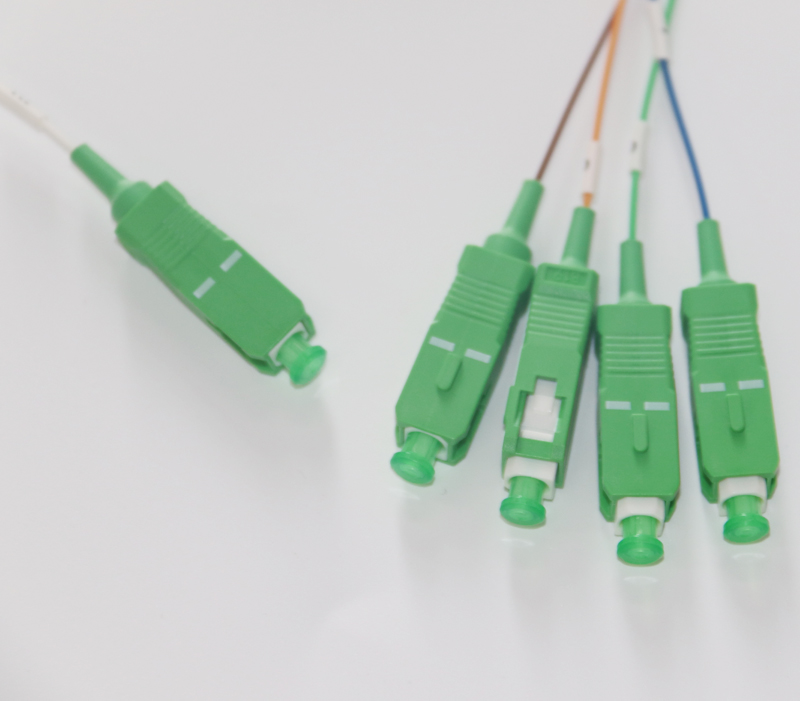

Connector Type:SC/APC or SC/UPC
Fiber Type:G652D/G657A1 or Customized
Fiber length:1 m 1.5 m or Customized
Fiber Color:White or colors

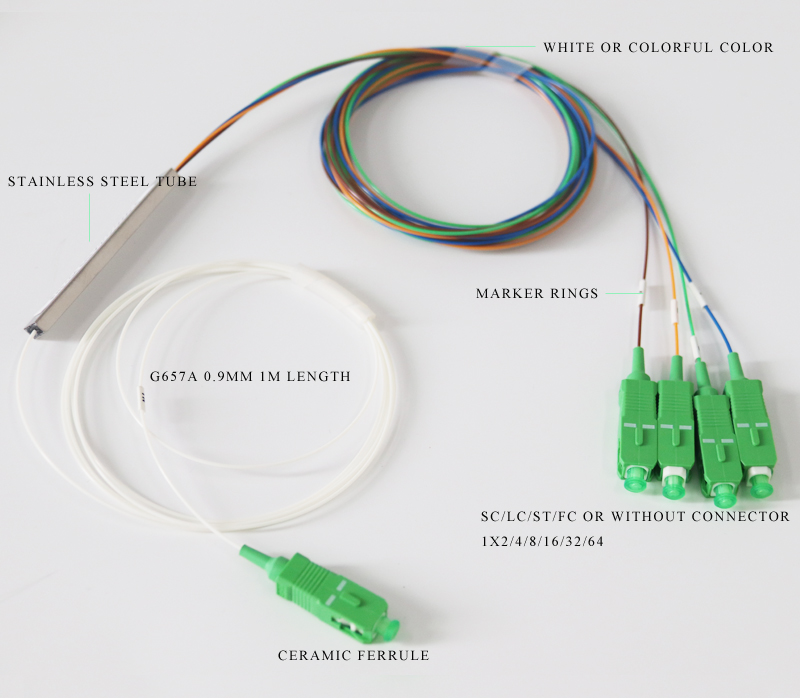

Housing Material:Stainless Steel
Cable Diameter:0.9mm
Insertion Loss(dB):4.1
Wavelength:1260-1650nm
Certification::CE/ROHS/ISO9001

Quantity

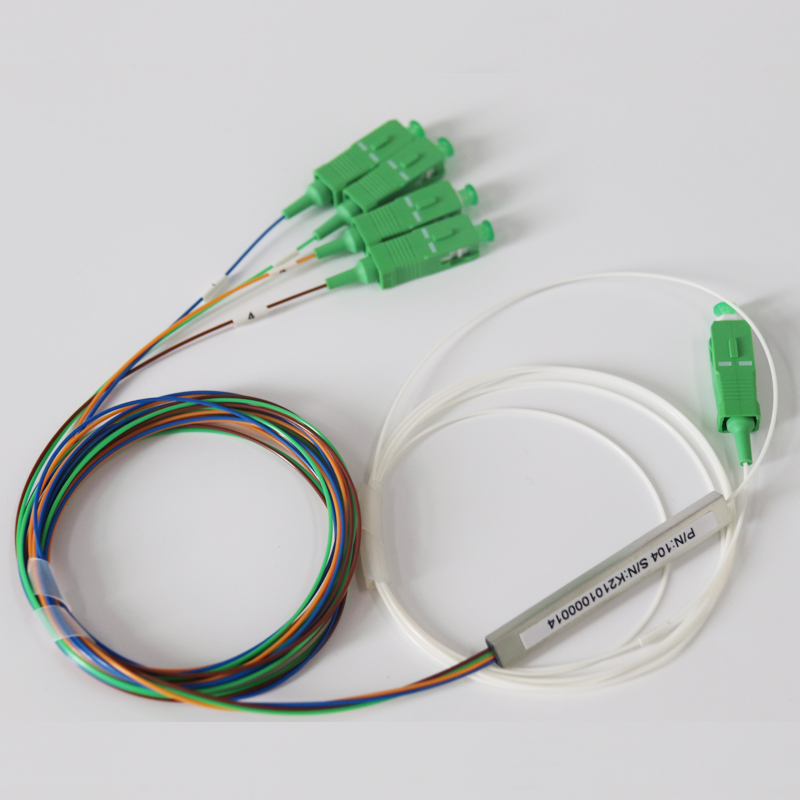

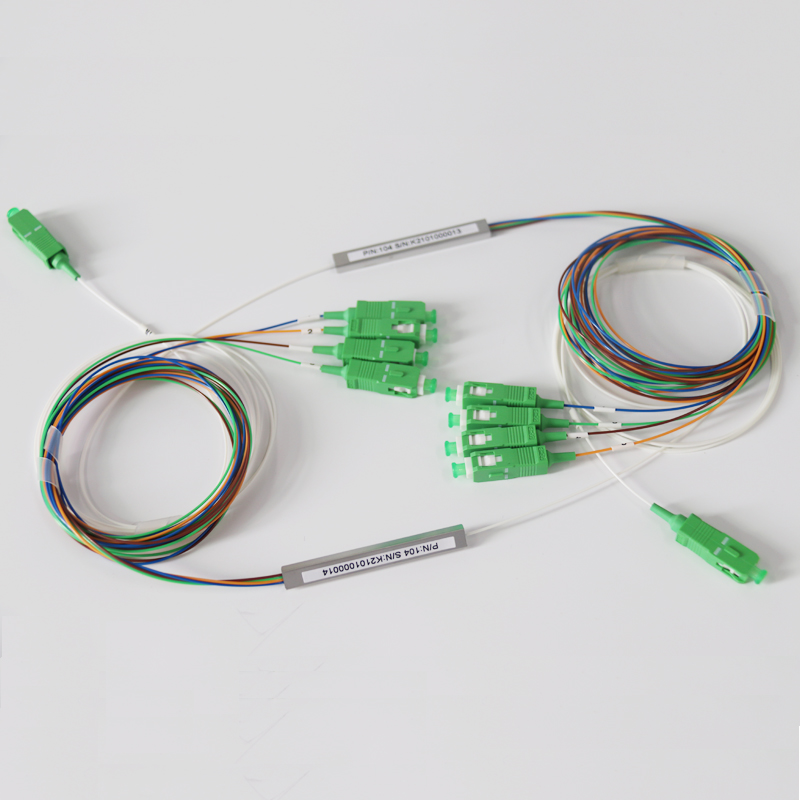

The PLC splitter is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small volume, wide operating wavelength range, high reliability, good uniformity of spectrophotometer and so on. For passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and to achieve optical signal shunt. The 1xN and 2xN splitters evenly divide the optical signal into multiple outlets evenly from a single or dual inlet, or vice versa, to import multiple optical signals into a single or two root fiber.

Features：
* Low excess loss
* Excellent directivity
* Good channel-to-channel uniformity
* Low PDL
* High cost-effectiveness
* High environmental and mechanical stability

Application：
* Fiber optical communication system
* Fiber optical sensors
* CATV System
* LAN System
* WAN System

Specification
Parameters	1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(S/P Grade)	4.3/4.1	7.6/7.4	10.7/10.5	14/13.8	17.1/16.9	21.6/20.4
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Packaging Dimension (mm) (L×W×H)	6074	6074	6074	60124	80206	120406
