Outdoor indoor 72 core fiber distribution box fiber optic junction box FTTH fiber optic fusion box
OP-FXX-72
Product name:Outdoor 72 core fiber distribution box
No. of Fiber:72
Installation:Wall mount/Pole
Material:ABS

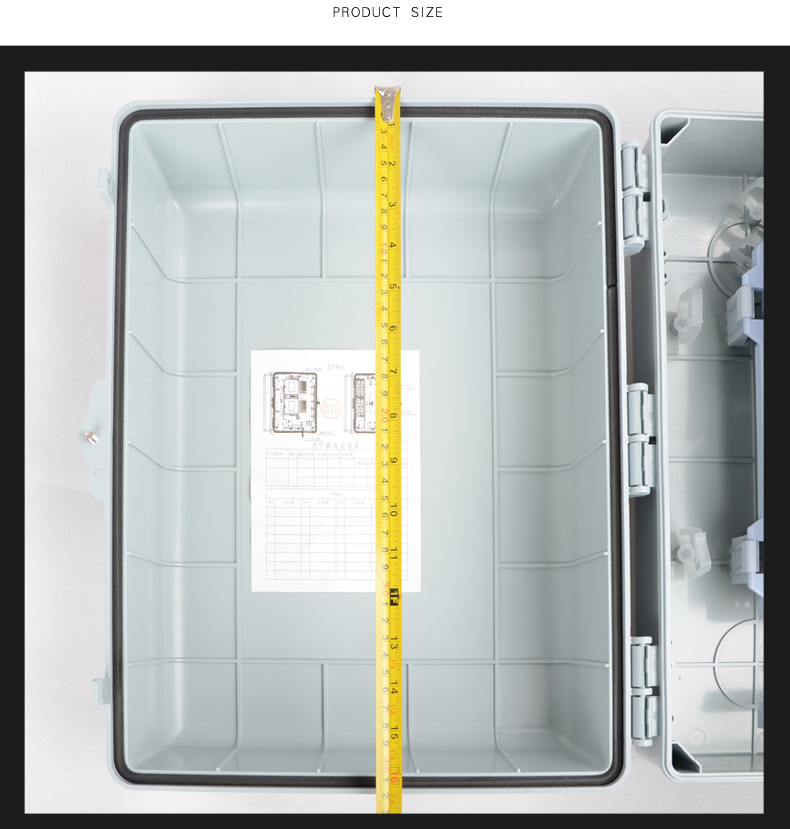

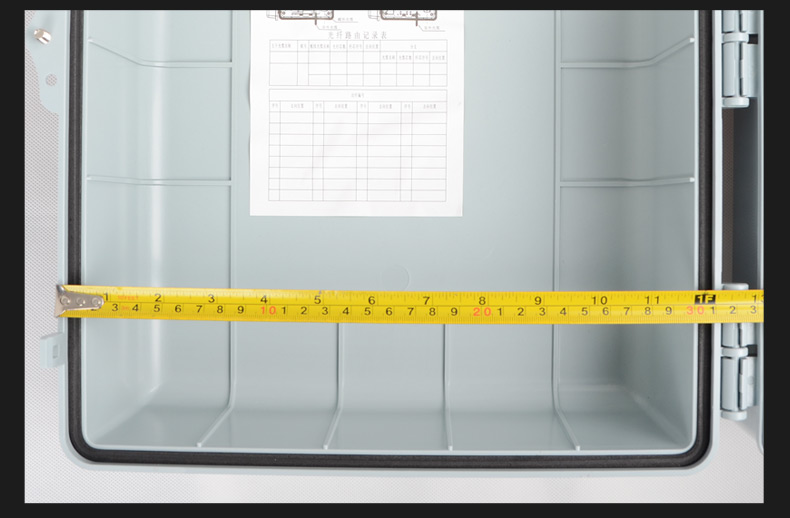

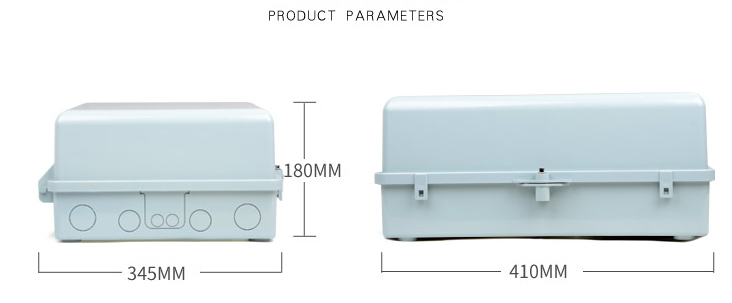

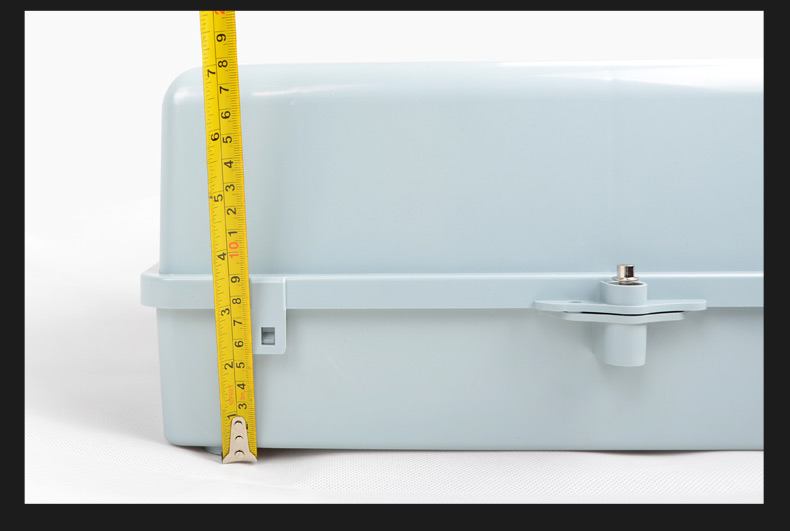

Size:410*345*180MM
Weight:2.8KG
Application:FTTH FTTB FTTX Network
Insert loss:≤0.2dB
Working Tempreture:-40~+60℃
No. of Fiber:72
Installation:Wall mount/Pole
Material:ABS
Size:410*345*180MM
Weight:2.8KG
Application:FTTH FTTB FTTX Network
Insert loss:≤0.2dB
Working Tempreture:-40~+60℃
Quantity
Description:
This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Features:

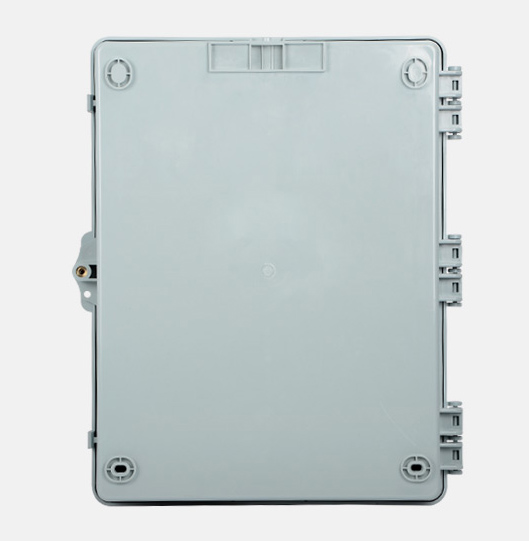

1、Total enclosed structure.
2、Material: ABS, wet-proof、water-proof、dust proof、anti-aging, rosh.

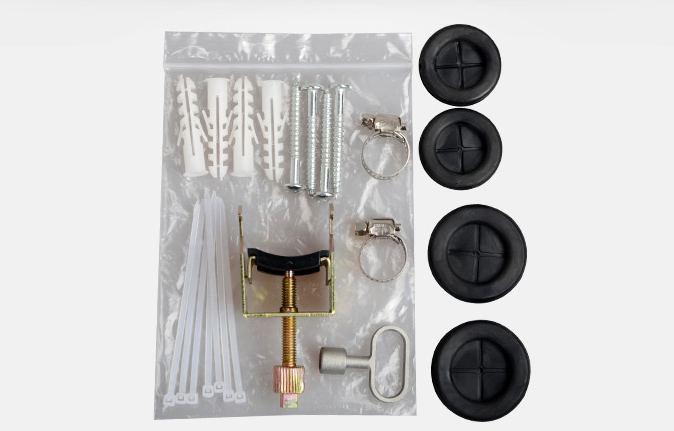

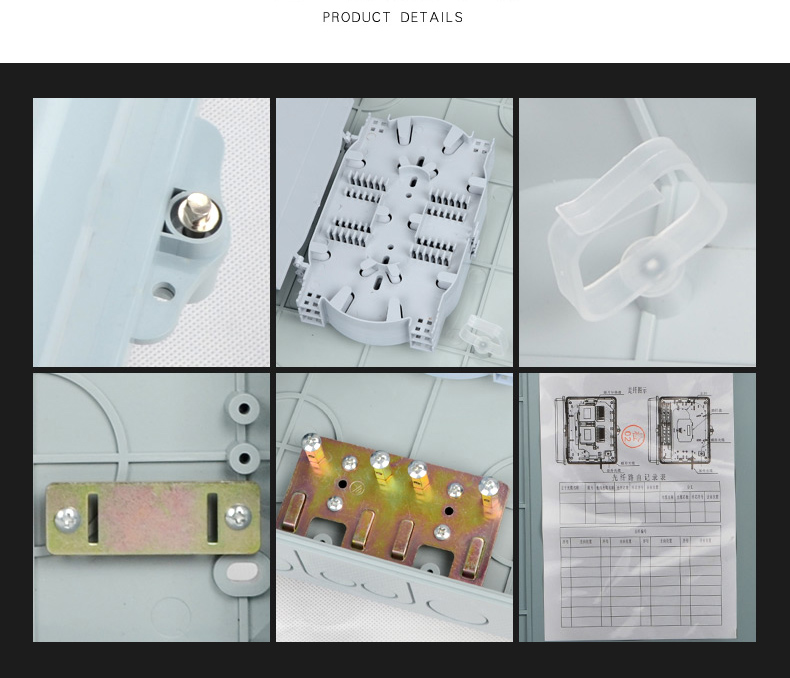

3、Clamping for feeder cable and drop cable, fiber splicing, fixation, storagedistribution ... etc all in one.
4、Cable, pigtails, patch cords are running through own path without disturbing each other,cassette type SC adapter .installation, easy maintenance.

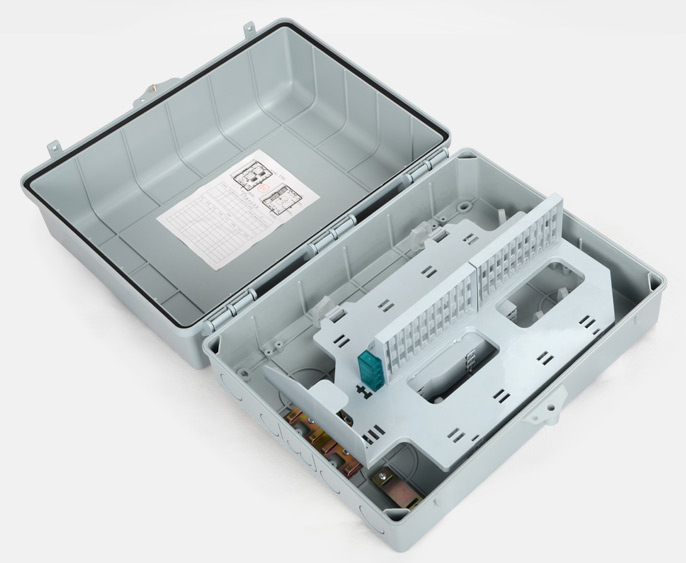

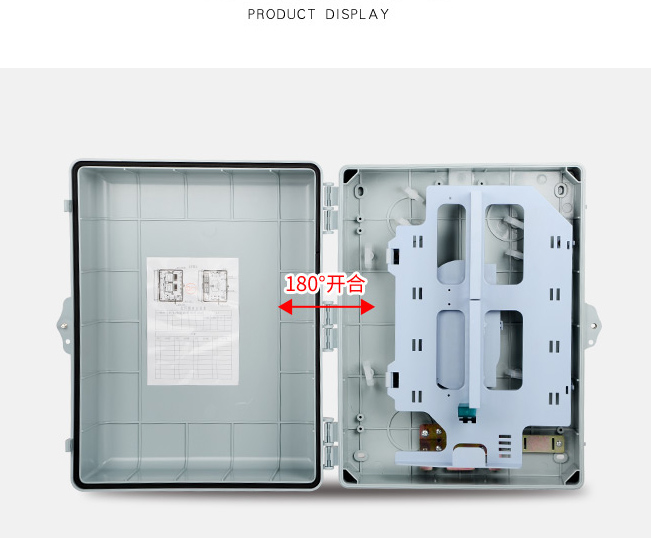

5、Distribution panel can be flipped up, feeder cable can be placed in acup-joint way, easy for maintenance and installation.
6、Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses.
