CATV56EYA 1U Series High Power Er/Yb Doped Fiber Amplifier 16 Ports
Features
1. Erbium co-doped double-clad fiber technology.
2. Built-in low-noise preamplifier eliminates the need for EDFA cascading, greatly reducing system CNR and MER degradation.
3. Output total power range: up to 23dBm ~ 37dBm (5W) optional.
4. Output power adjustable range +0.5~-4dBm.
5. Perfect network management interface, in line with SNMP network management protocol.
6. Adopts a mature dual-power hot backup structure dedicated to servers, and cooperates with a microcomputer-controlled intelligent temperature control system to effectively improve system reliability.
7. Adopt 144*32 blue dot matrix LCD display to realize parameter on-site monitoring.
8. The front panel indicator monitors and instructs the operatingstatus of the equipment parameters in real time. Easy to find problems in time.
9. Output port optional: SC connector 4 ~ 16 optional; LC connector 8 ~ 32 optional, optional WDM.
10. The back panel can be flexibly removed and replaced according to the number of output ports.
Applications
The56EYAxx series high-power optical amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for applications of CATV or 1~8 continuous strip channels (ITU wavelengths). It provides a flexible, low-cost solution for large- scale FTTH coverage of CATV systems in large and medium-sized cities.
56EYAxx can achieve single-wavelength cable TV transmission, CWDM single-fiber three-wave, flat gain, DWDM; its reliable and excellent performance ratio between the main application of FTTH, FTTB, DBS, MMDS, FTTX pon, is to build CATV large Medium-sized optical fiber transmission network is an important equipment.

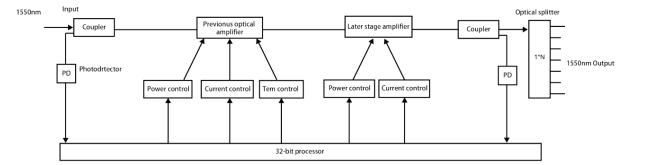

Block diagram
Limit parameter
Technical parameters | OP-56EYAxx |
Maximum received range | 1535-1565nm |
Lowest input optical power | -5dBm |
The highest input optical power | +10dBm |
Extreme operating temperature | -5℃~+42℃ |
Limit supply voltage | AC160~265V&DC90~130V&DC38~58V |
Technical parameters
Technical parameters | OP-56EYAxx |
Wavelength | 1535-1565nm |
Input power range | -5dBm~+10dBm（normal input -2dBm~+5dBm） |
Output optical power | 26dBm~37dBm |
Optical power stability | ±0.1dBm |
Noise figure | ≤5.0dB（Pin=0dB） |
Input return loss | ≥45dB |
Output return loss | ≥45dB |
C/N | ≥50dB |
C/CTB | ≥63dB |
C/CSO | ≥63dB |
Optical connector | SC/APC；SC/PC；LC/APC；LC/PC |
Supply voltage | AC220V(160V ~ 265V) /AC110V（90 ~130V）/DC48V（38 ~ 58V） |
Consumption | ≤50w |
Working temperature | -5℃~+42℃ |
Storage temperature | -30℃~ +70℃ |
Maximum working relative humidity | Max 95% non-condensing |
Size | 380(W)*482(L)*44(H)mm |
Package size（1pc） | 595(W)*490(L)*120(H)mm |
Package size（2pcs） | 595(W)*490(L)*230(H)mm |
Model guide

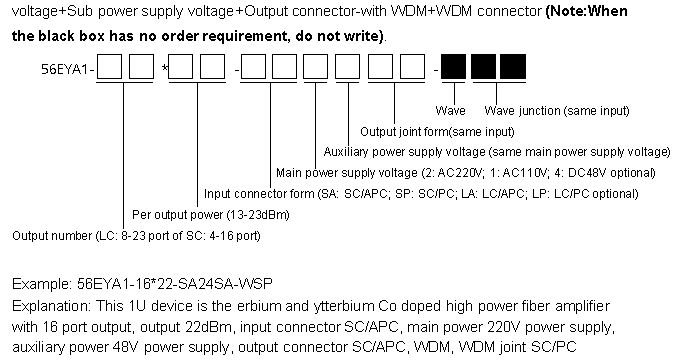

OP-56EYA1-Output port*Per port output power-Input optical connector+Main power supply

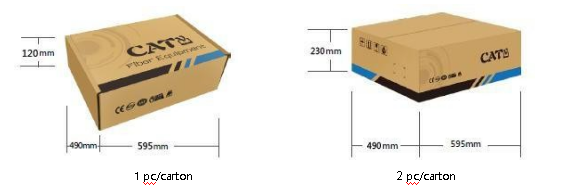

Package & Label
