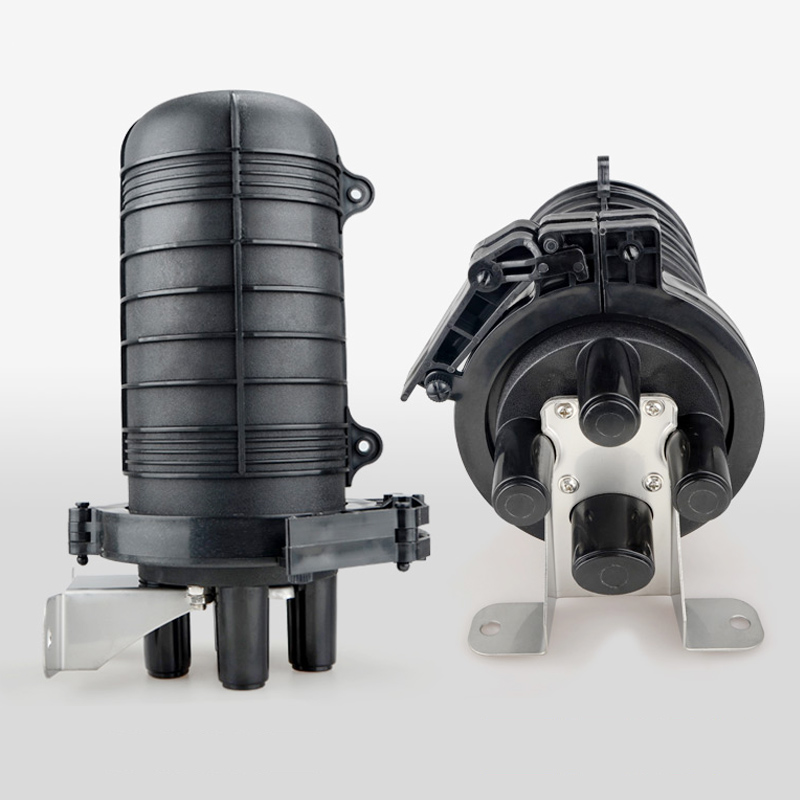

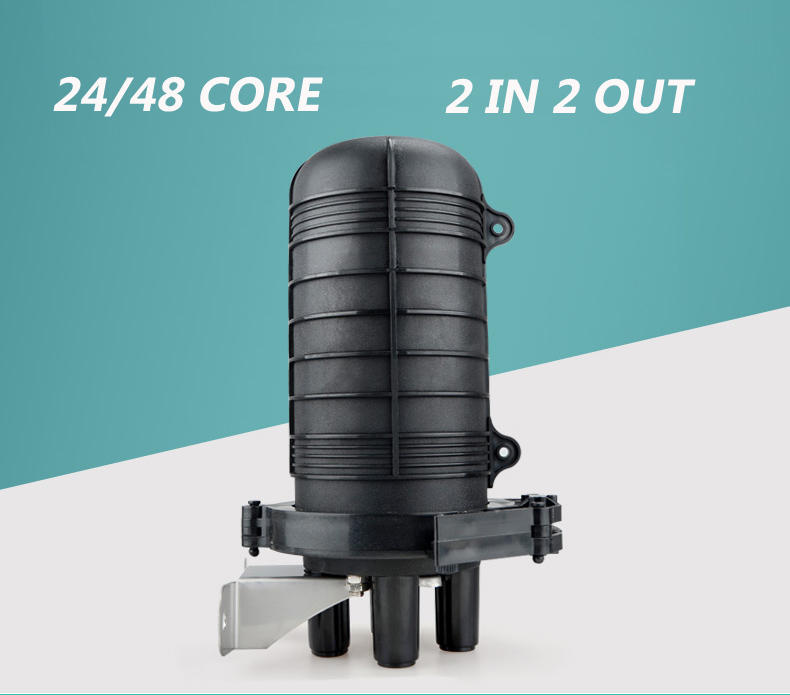

24/48 Core fiber optic splice closure joint box waterproof dome optical fiber optic splice box
OP-JXH-48
Product name:24/48 Core fiber optic splice closure joint box
Ports:4 Ports
Max Capacity:48 core
Tray number:4pcs 12 core splice tray
Material:PP or OEM
Color:Black

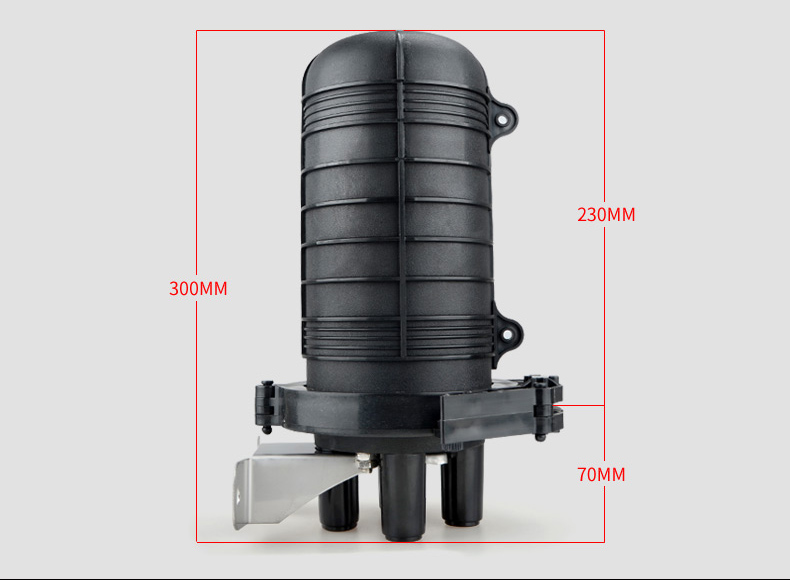

Size:300*135mm
Weight:2kg
Ports:4 Ports
Max Capacity:48 core
Tray number:4pcs 12 core splice tray
Material:PP or OEM
Color:Black
Size:300*135mm
Weight:2kg
Quantity
Product Description

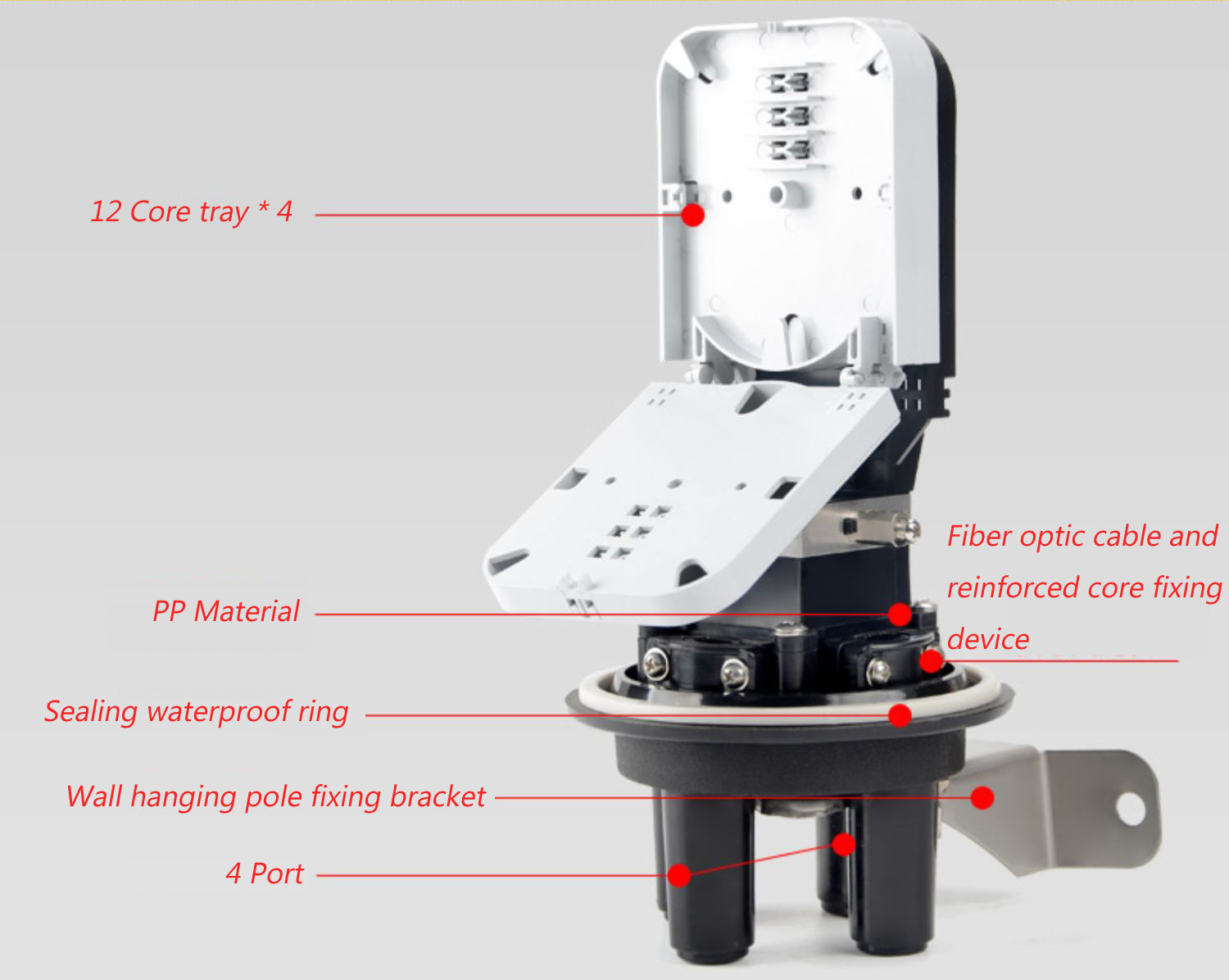

Features:

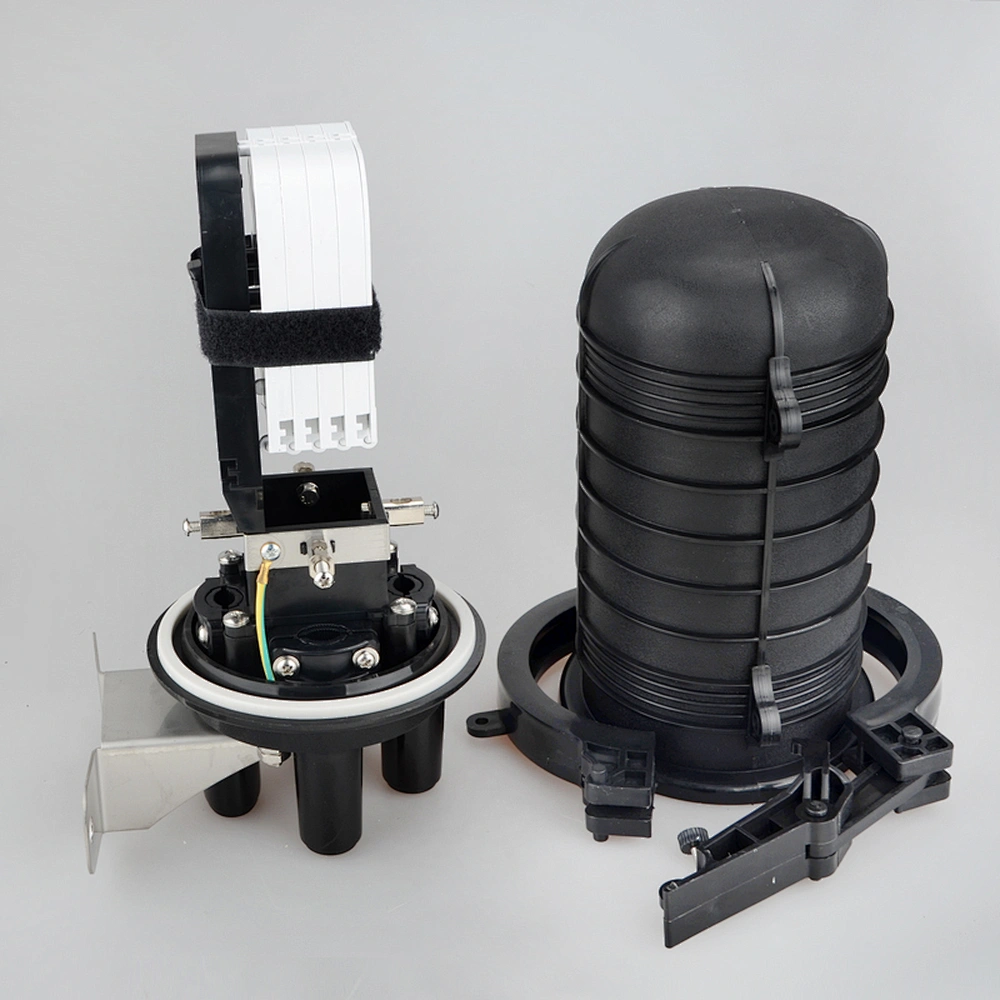

1.The shell is made of high-strength engineering plastic and added with anti-aging agent, which is waterproof, anti-seismic and oxidation resistant 2.Enlarge and thicken the melt fiber tray for easy operation and repeated opening 3.Stainless steel screw fixation, thickened design, resistant to aging and cracking after tightening screws and nuts 4.It can be directly buried or installed overhead to protect the optical cable throughout the entire process5.Supports air pressure detection, with a valve installed on the casing for easy inflation and measurement of air pressure during sealing inspection.
Overview:
The fiber junction box is widely used in communication, network systems, CATV cable television, and optical fiber network systems. It can be directly connected or branched. The box is made of high-strength engineering plastic, with advanced structure, lightweight, and sealing performance. It is suitable for installation in overhead, pipelines, attached poles, and indoor environments
Specification:
